SKU: SC-MK-YAM-SUB-7236-01

Scotts Damper Yamaha Sub Mount Kit (7236) YZ 250 2 Stroke 06->, YZ 125 06->, YZ 250 X 16->. Australia


Calculate Shipping

Standard Shipping Toll - $19.00

Australia Post - $20.00
Express Post

YZ 250 2 Stroke 06->, YZ 125 06->, YZ 250 X 16->

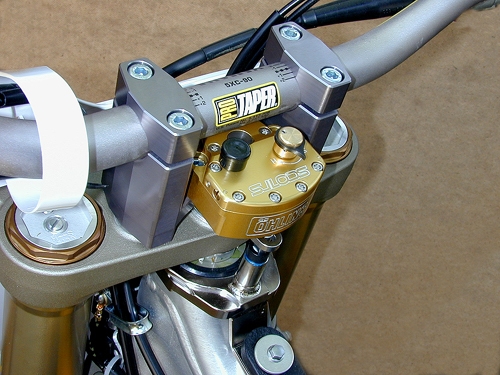

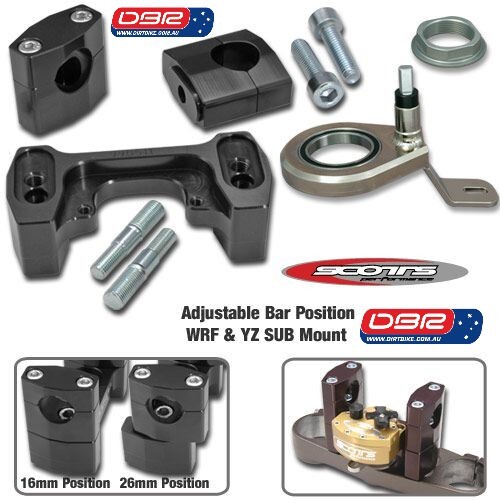

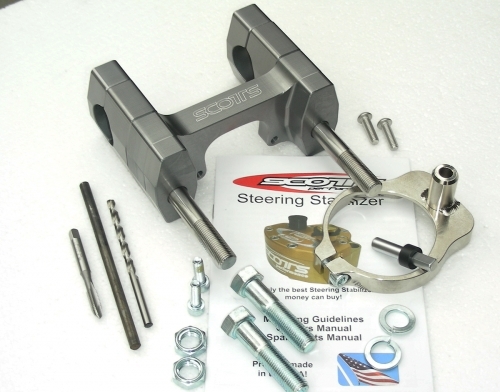

Shown here is the complete Sub Mount bolt on kit utilizing the stock Yamaha triple clamps. The kit mounts the Stabilizer Under the Bars, hence the term -SUB- mount which in turn raises the bars about 25mm. The photo shows the Sub mount in Gray to distinguish the parts, but the actual parts will be Black anodized to protect them from the elements. Sub mounts are available only for oversize handlebar applications unless you use our bar reducers. The kit comes with everything you need including step by step pictured instructions. See other photos for optional mounting kits and choices.

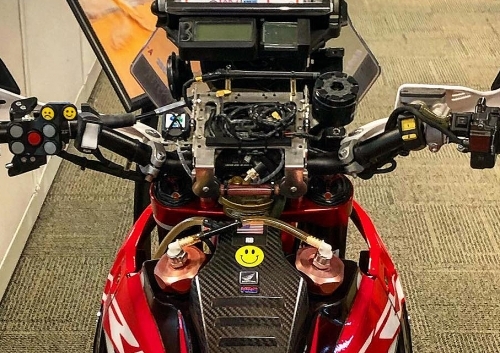

"SUB" mount stands for Stabilizer Under Bars, originally designed for raising the bars. These kits are designed for use with Oversize bars. "Bar reducers" are available as an option, to convert the kit to standard diameter bars, should that be desired. This concept allows more room for other equipment such as, Global Positioning Systems(GPS) or Enduro/Rally computers and yet still retain the quick access for adjusting the stabilizer. This is also good for the taller rider who wants his bars a little higher, as it raises the bar location approximately 11-25mm, depending on the model of bike. In some cases, you might consider a lower bend handlebar bend at the same time, unless you are trying to achieve a higher bar height along with your stabilizer installation. We can also help you with other handlebar choices to match your desired setup, as we have a full selection of handlebars to choose from on this website. The SUB mounts are only available on certain models based on the physical limitations of mounting in this area. Each SUB mount comes complete with all necessary parts, hardware and "Step by Step" pictured instructions. If you have any questions, feel free to call or email us. The Photo attached here may be a generic photo to show you the basic components in the kit, but may not be showing the exact kit for your specific bike.

Scotts Mount Kit Yamaha (7236) (SM 100 10 11) Sub Mount Kit O/S Bar

YZ 250  2 Stroke 06->,

YZ 125 06->,

YZ 250 X 16->

****Please phone 02 4872 4222 for more information and pricing****



Brand Scotts
Shipping Weight 1.2000kg
Shipping Width 0.160m
Shipping Height 0.120m
Shipping Length 0.210m
