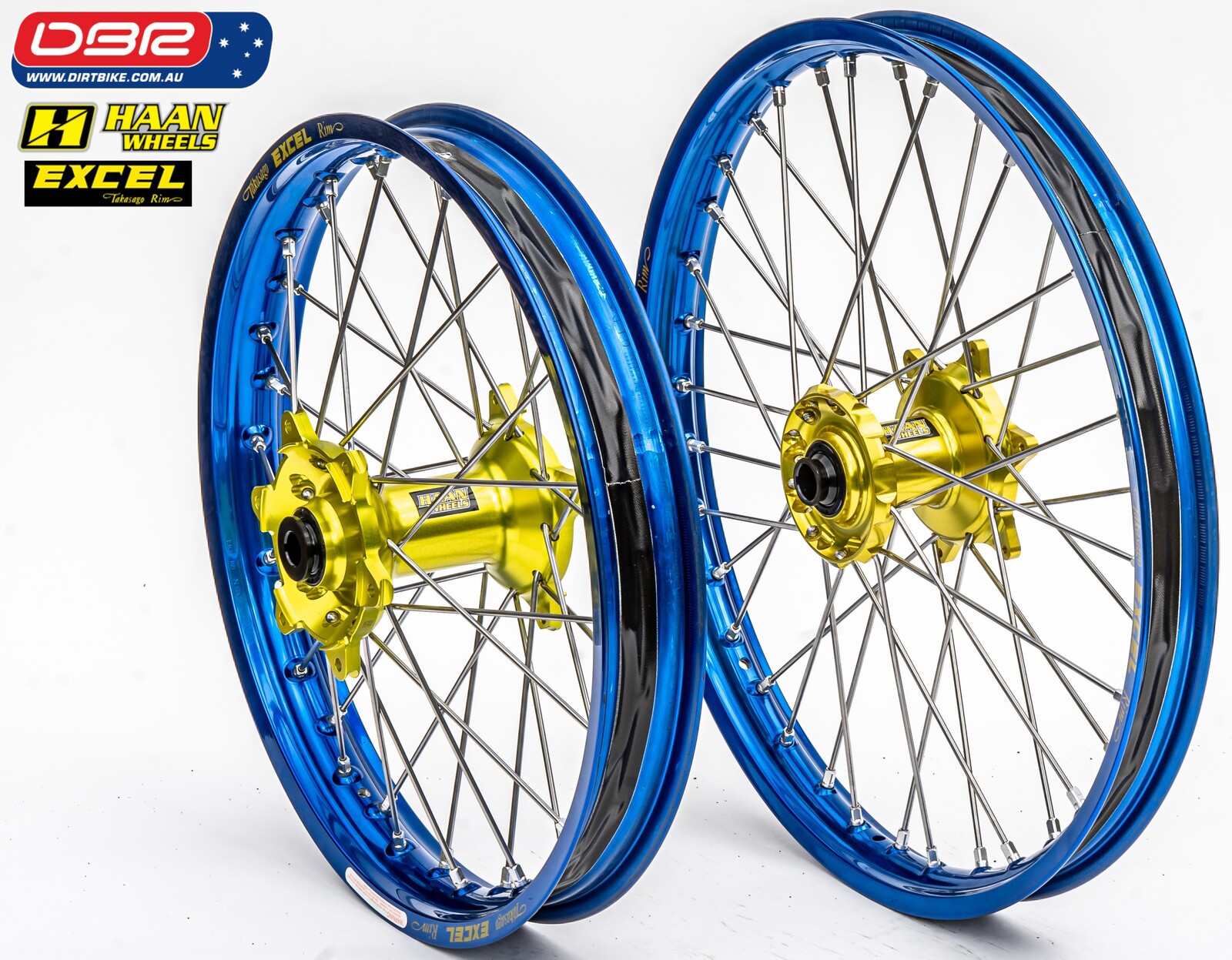

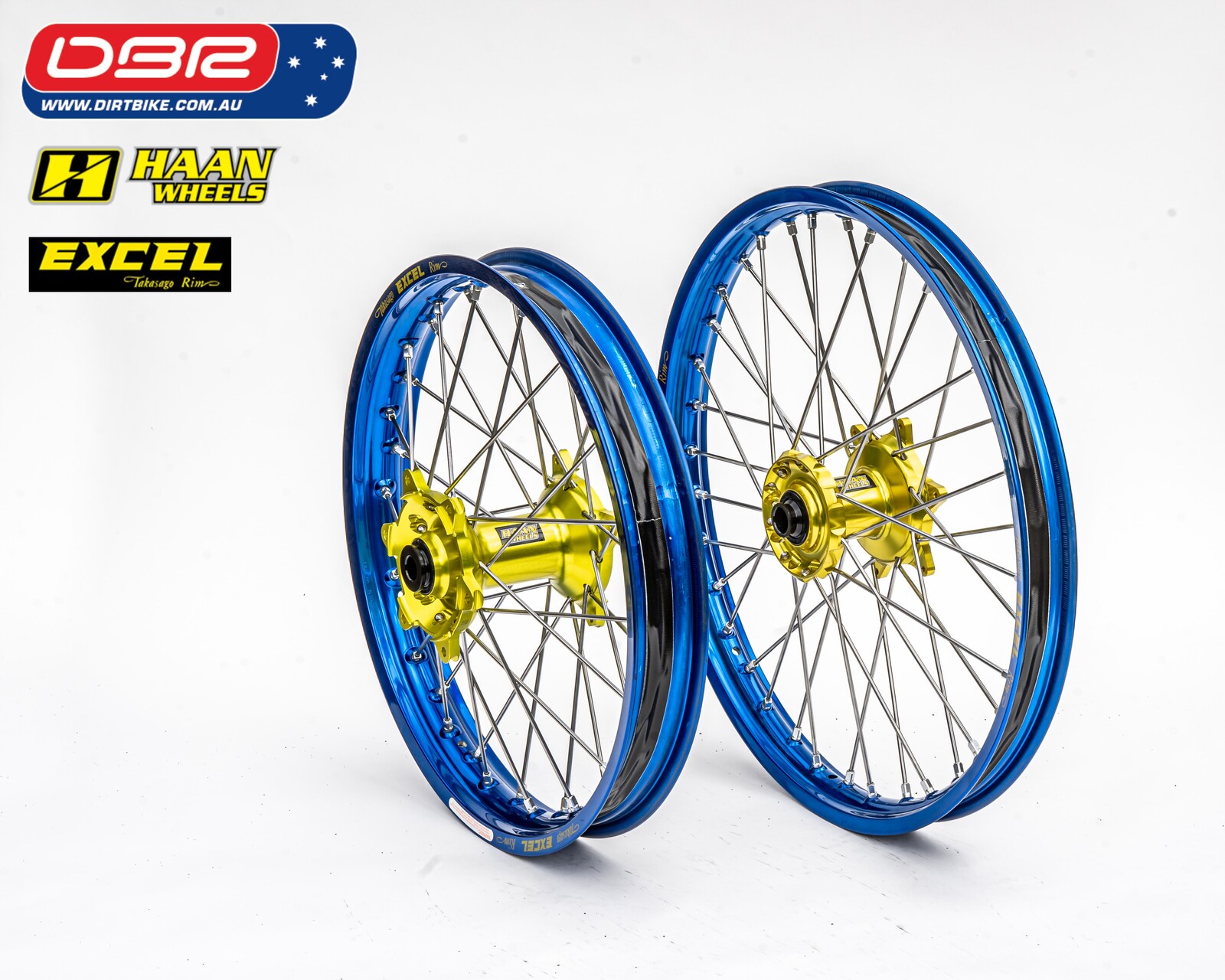

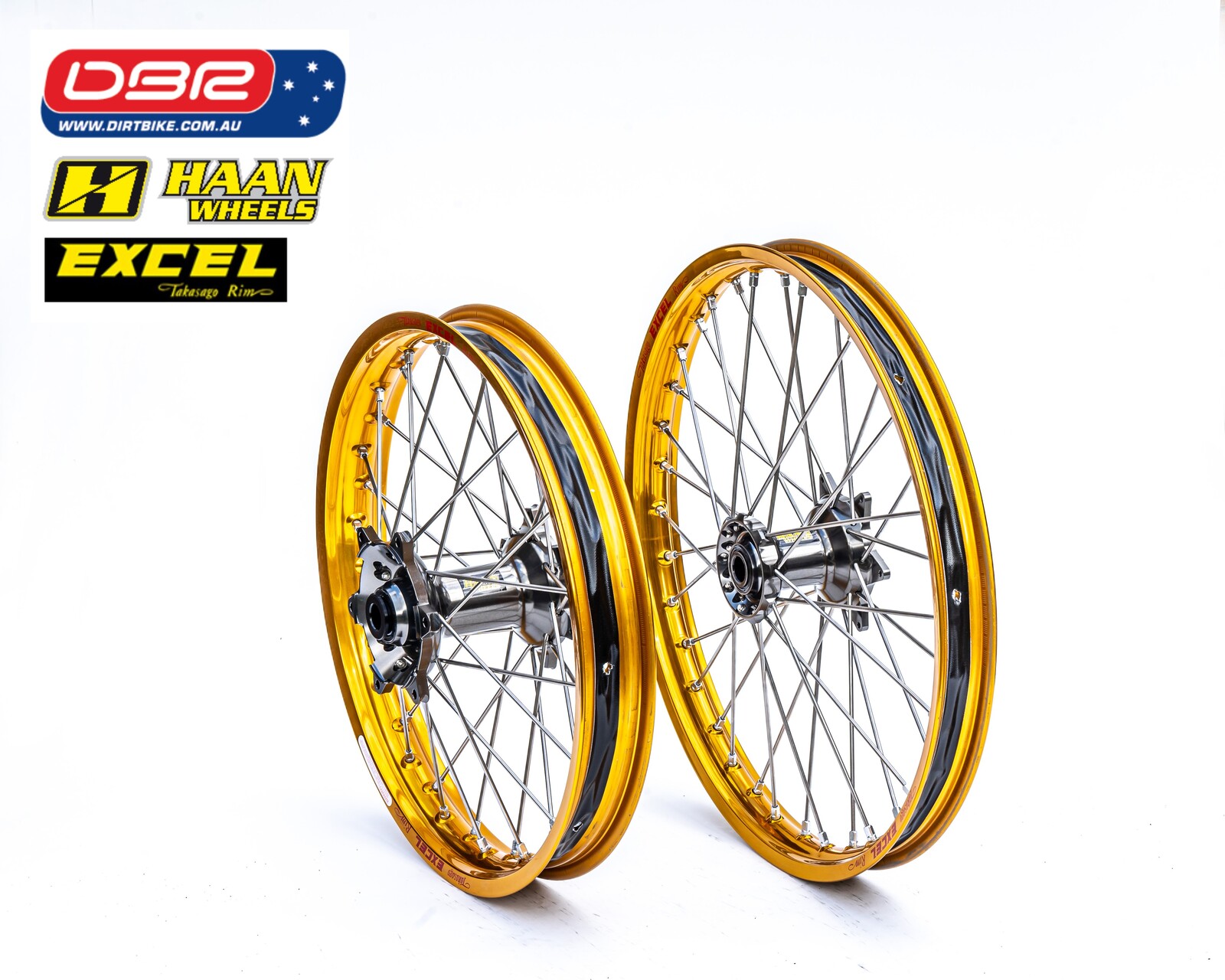

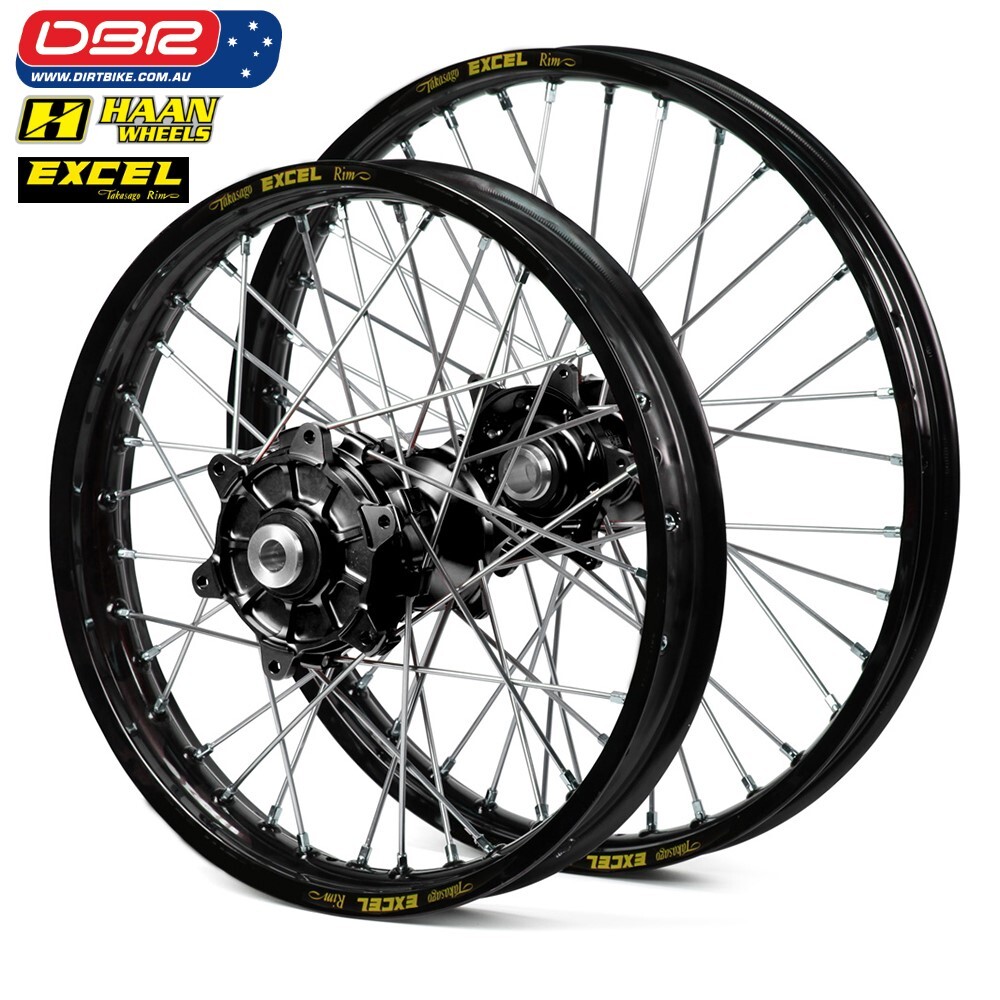

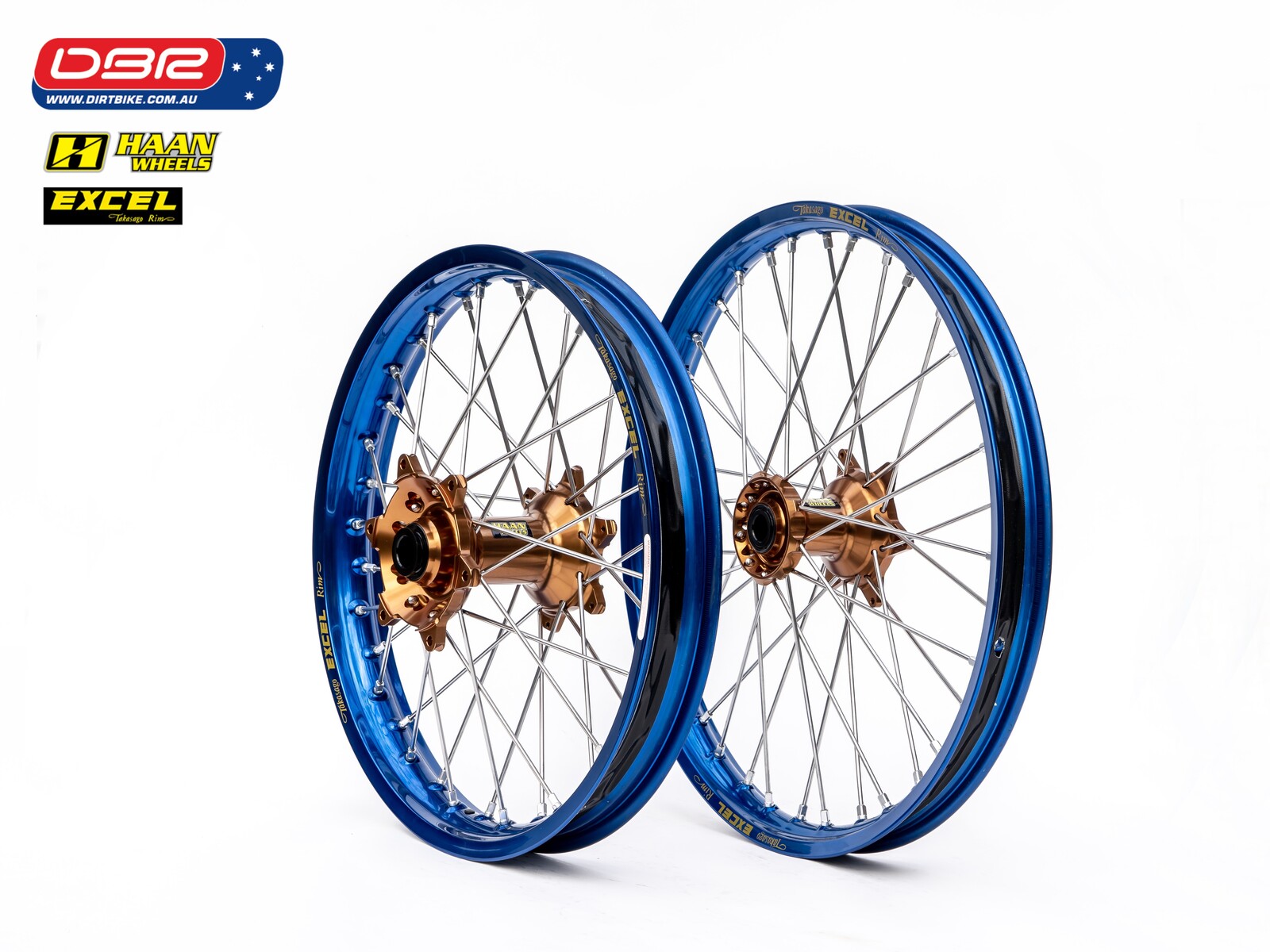

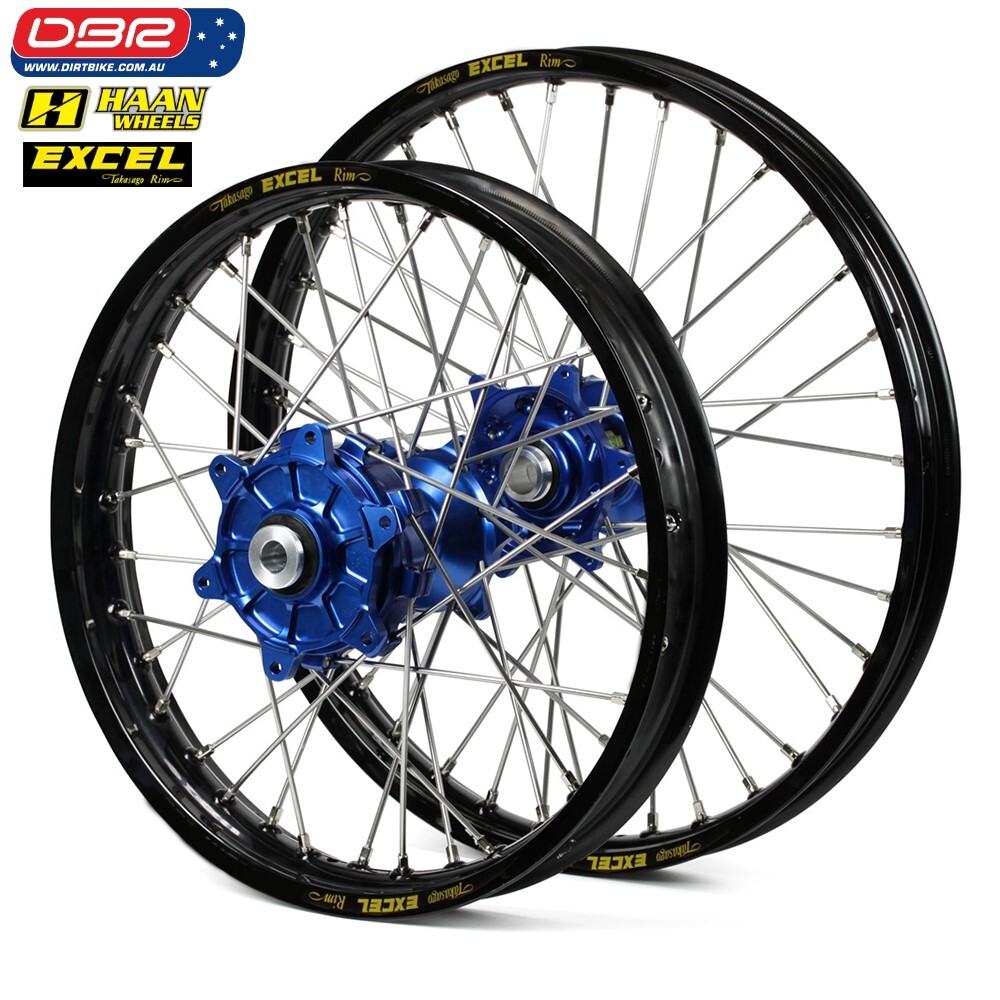

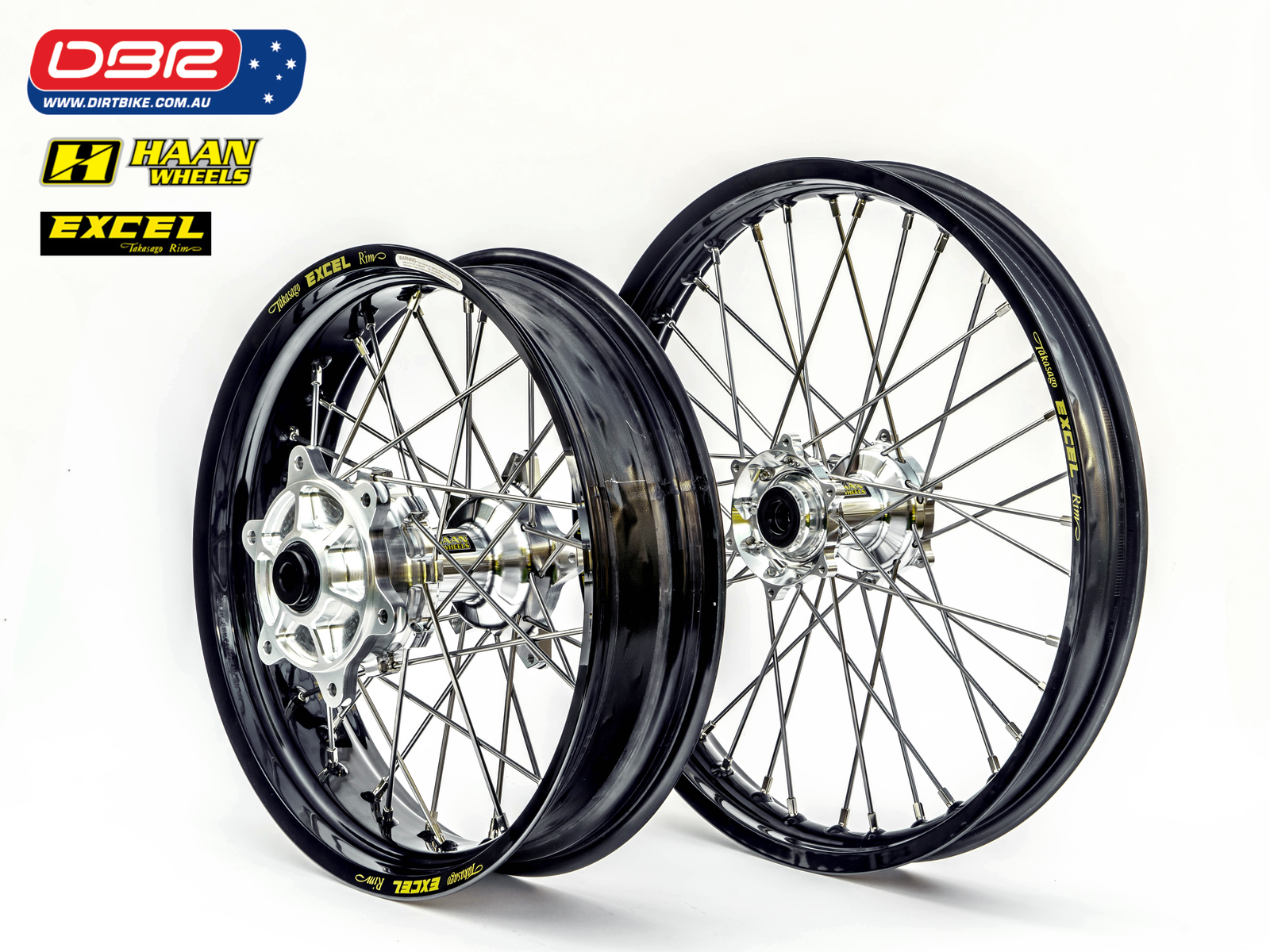

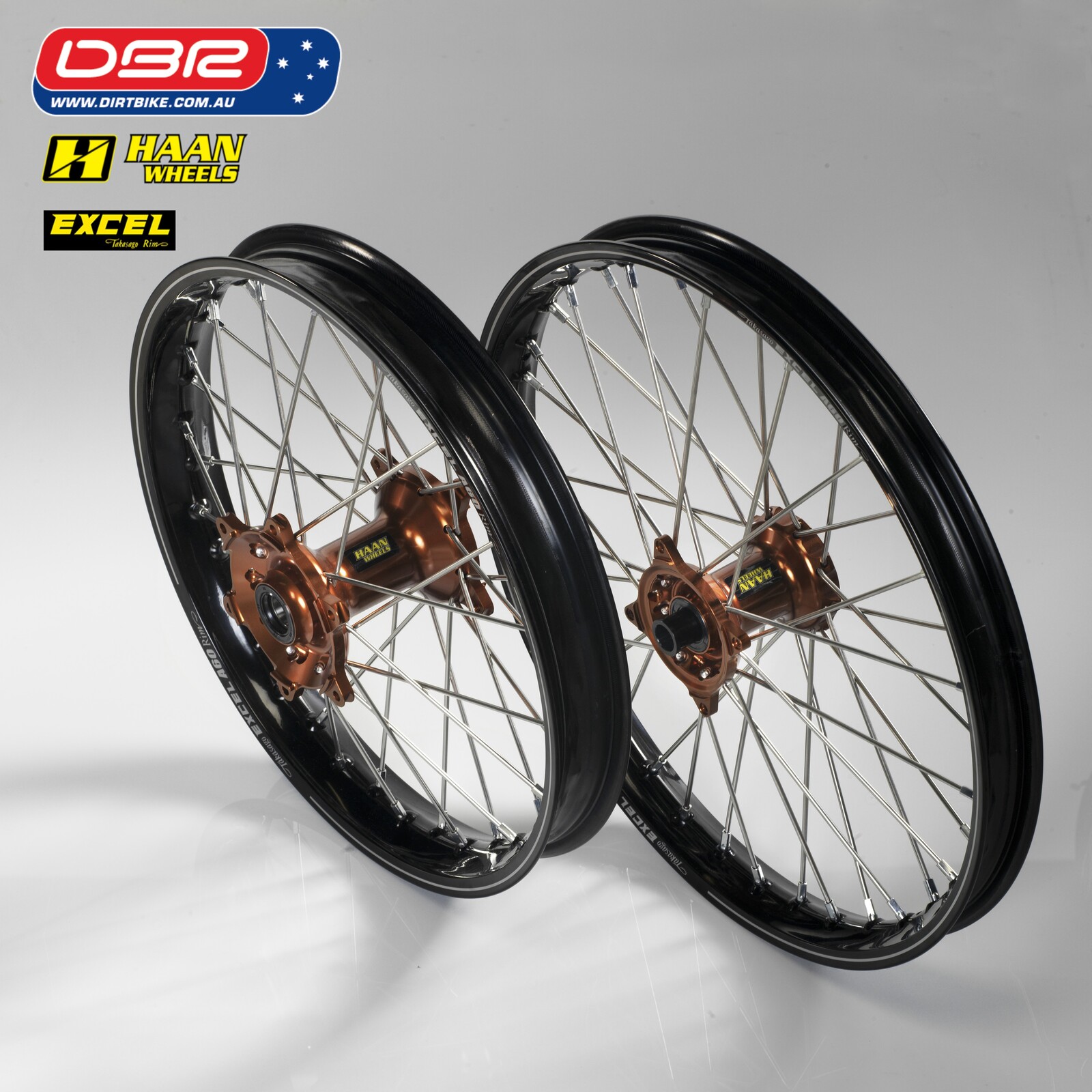

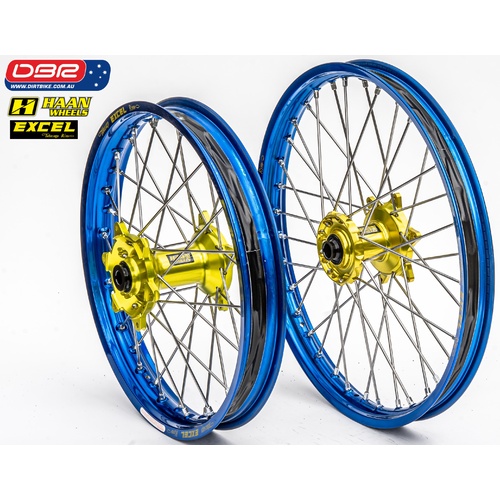

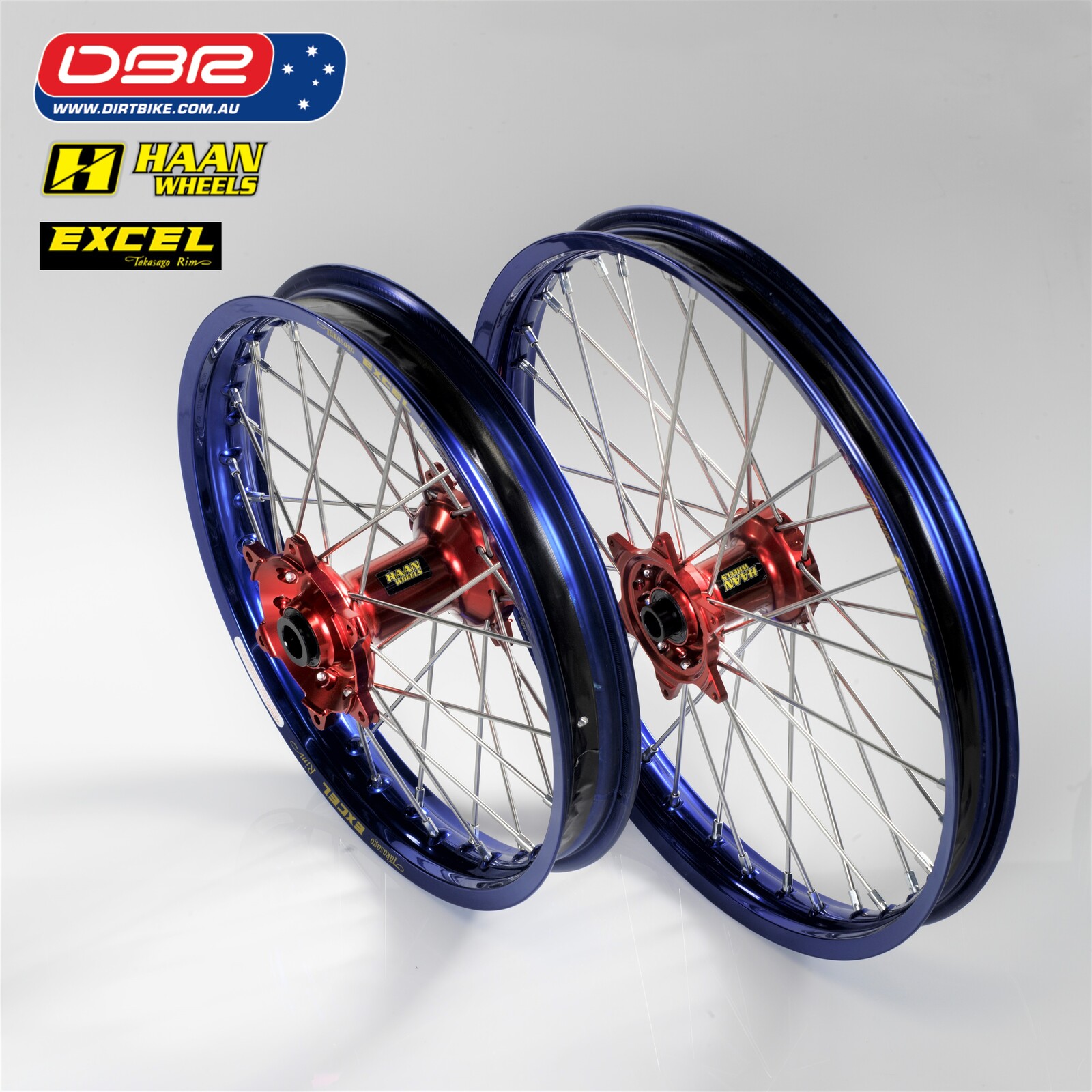

HAAN "Factory" Motorcross wheel Assemblies
Haan Wheels custom wheels are used by the best teams and riders in the world we have helped many riders to more than 35 world championships and countless European and national championships in professional and amateur racing divisions.

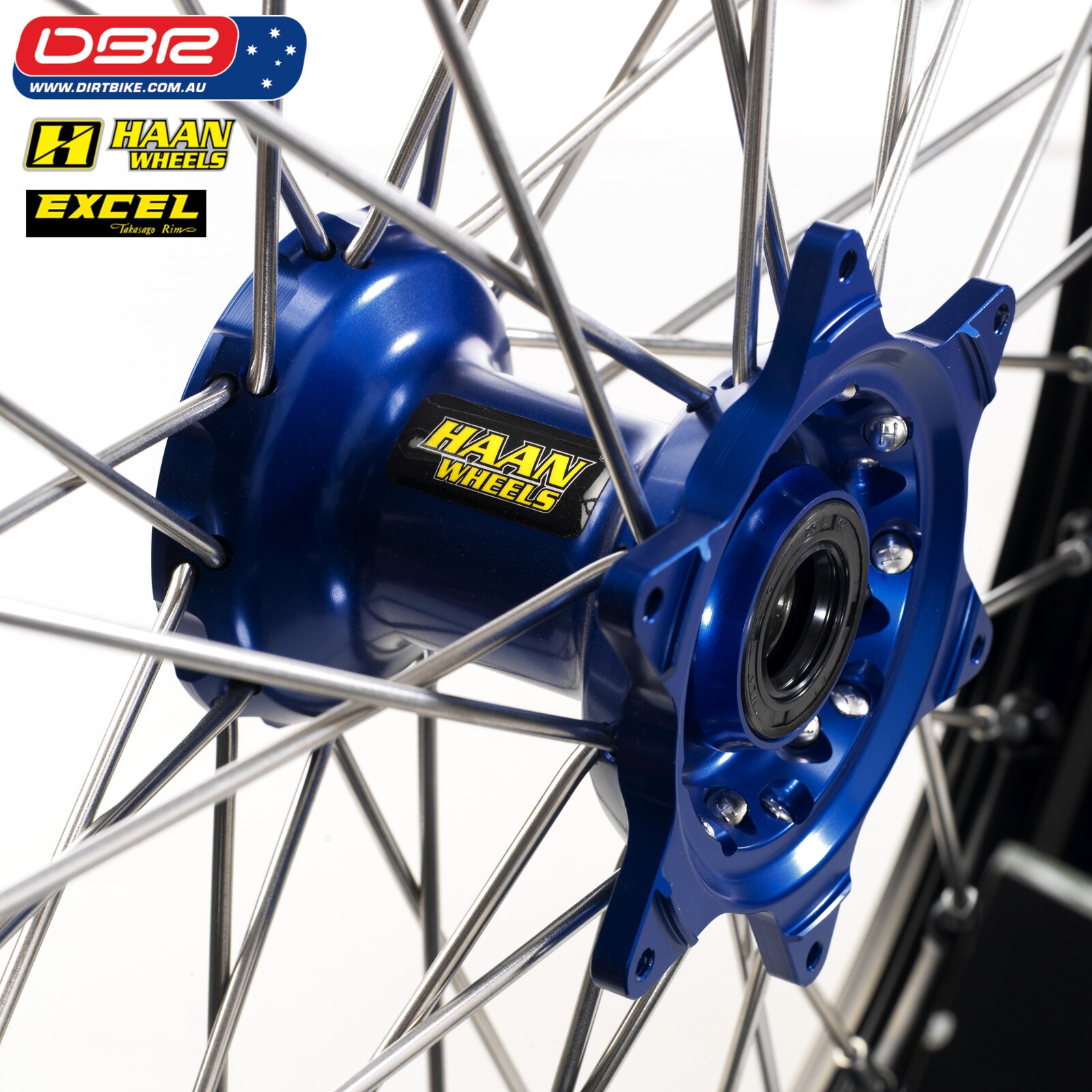

Our Haan billet hubs are made in The Netherlands and the wheels are assembled by our dedicated wheel specialists using the best rims in the world, Excel rims.
Used by 50% of world MX teams and Yamahas Factory Dakar Effort.
Haan Wheel assemblies also used in Australia by Factory Teams such as GHR Honda and leading privateers to win the A4DE / AORC / Finke / Hattah Outright !!
Click here to design your colour combo then return here for purchase. http://custom.haanwheels.com/configurator/configure/17/?qty=1
HAAN HUBS | motorcross

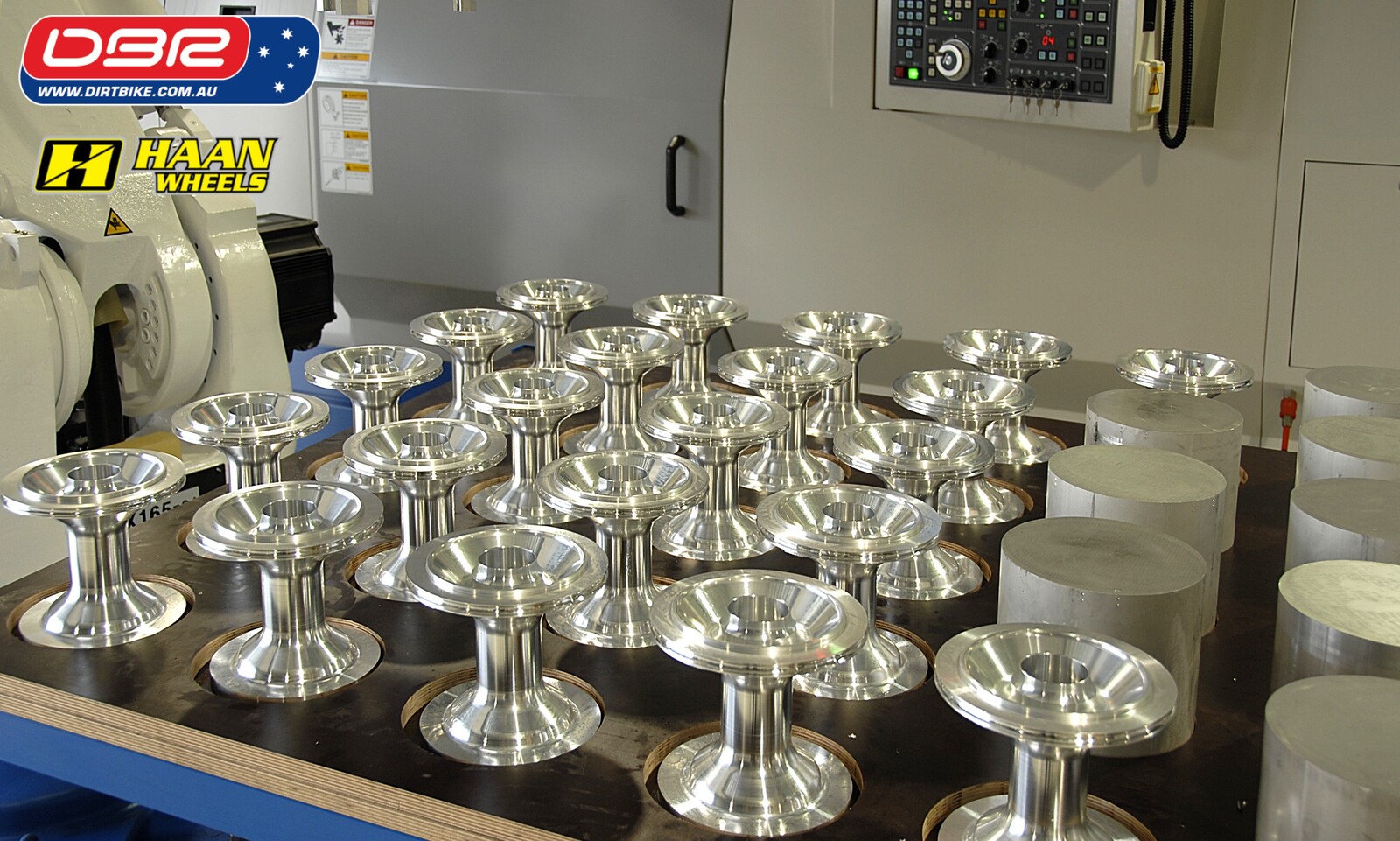

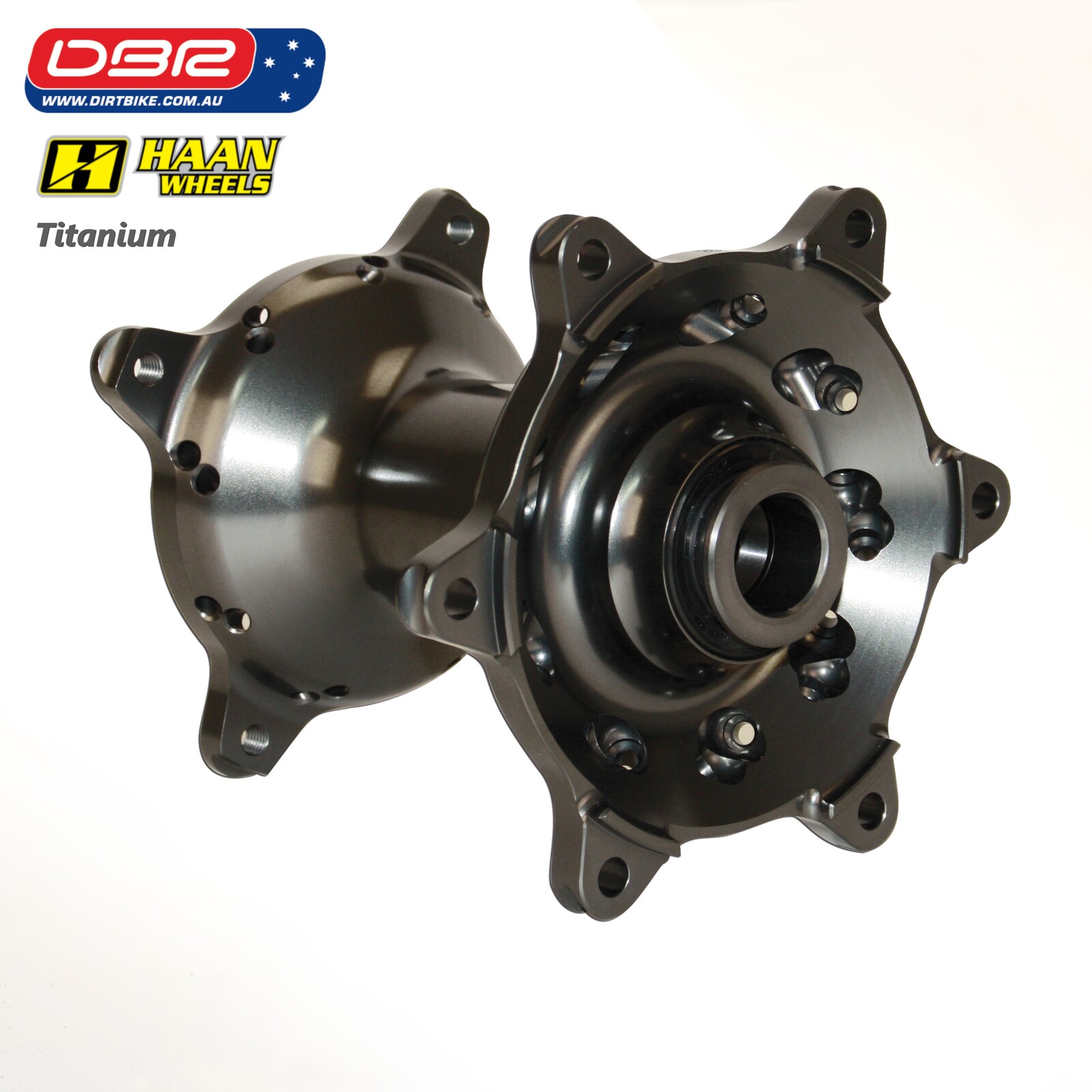

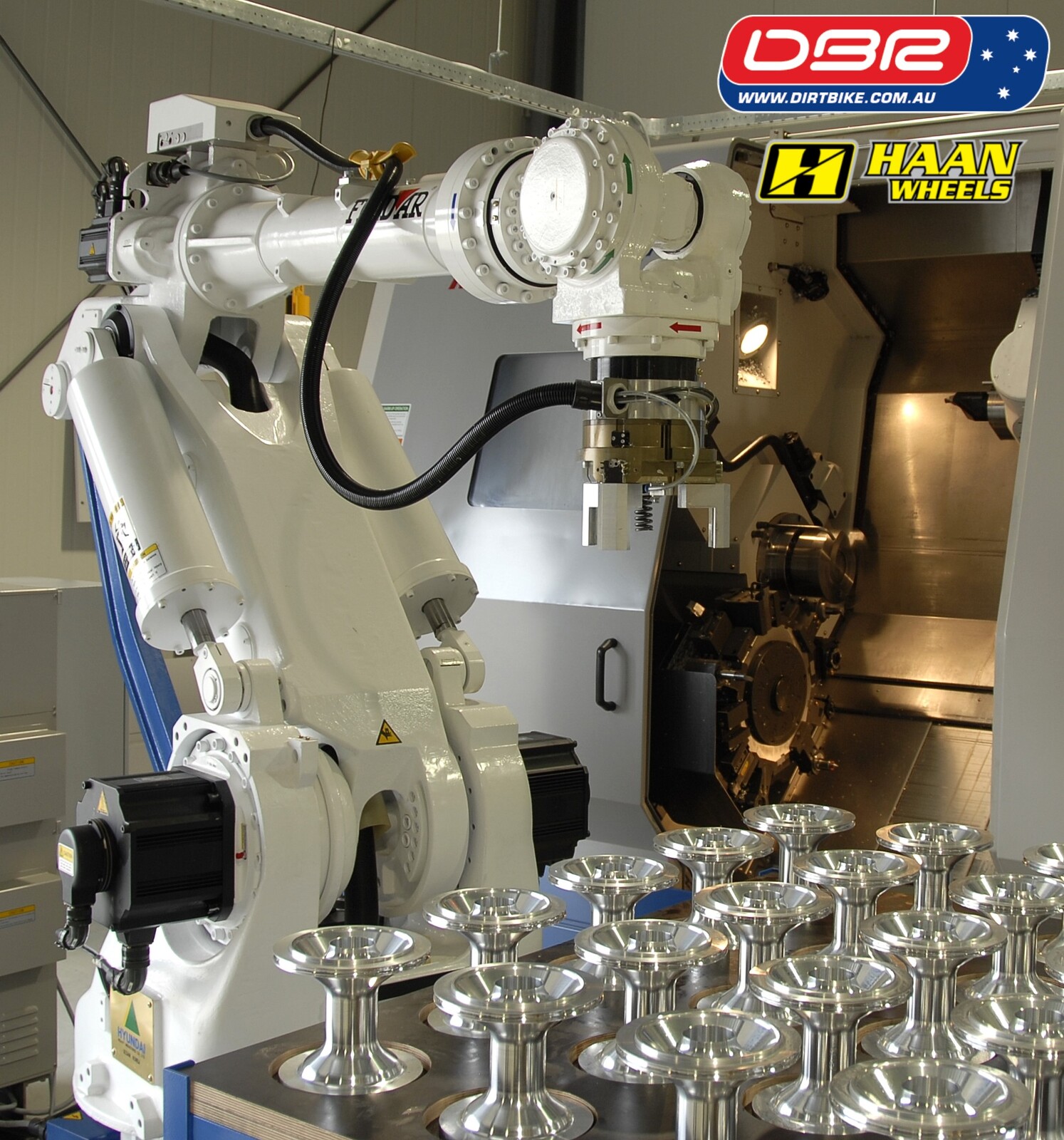

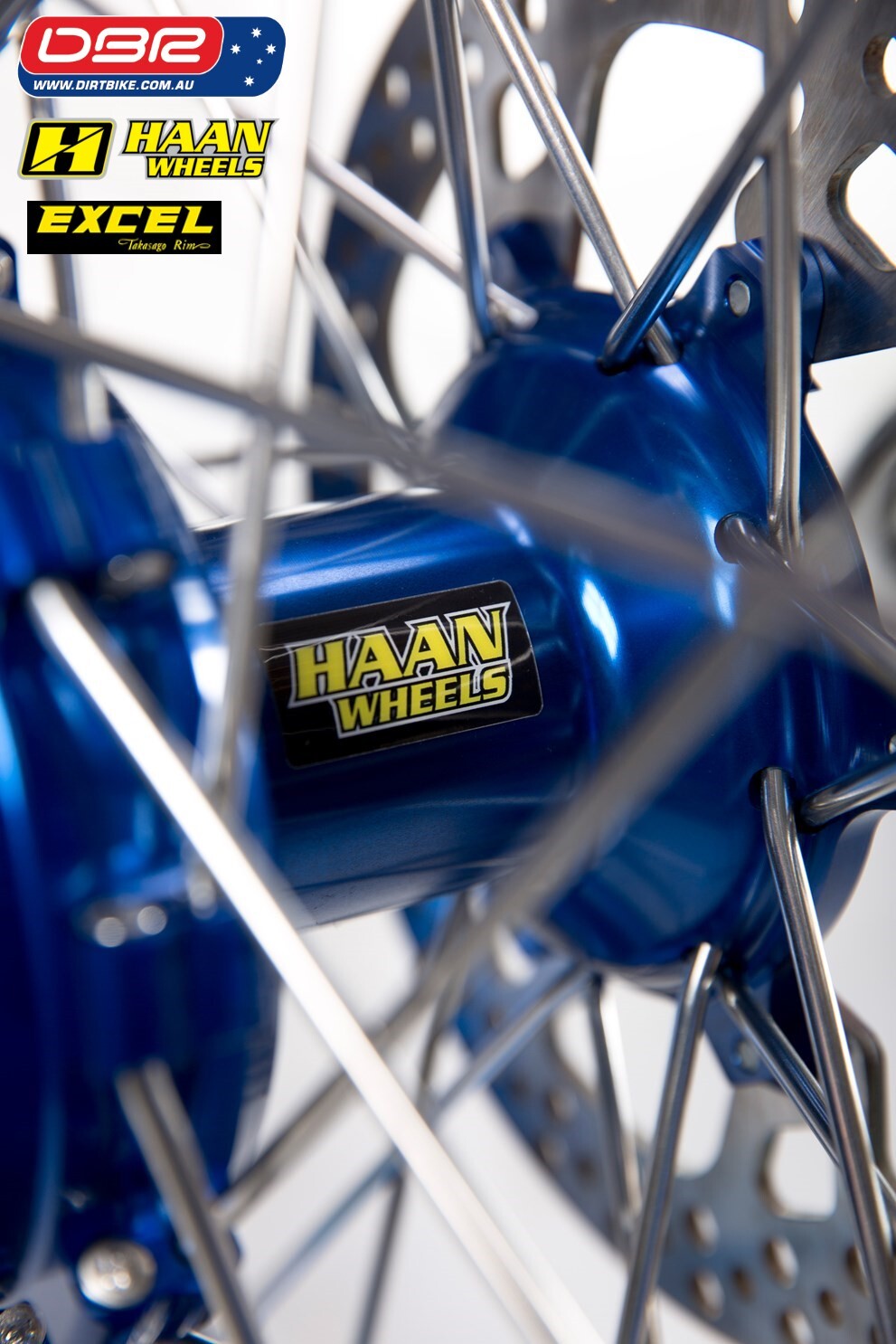

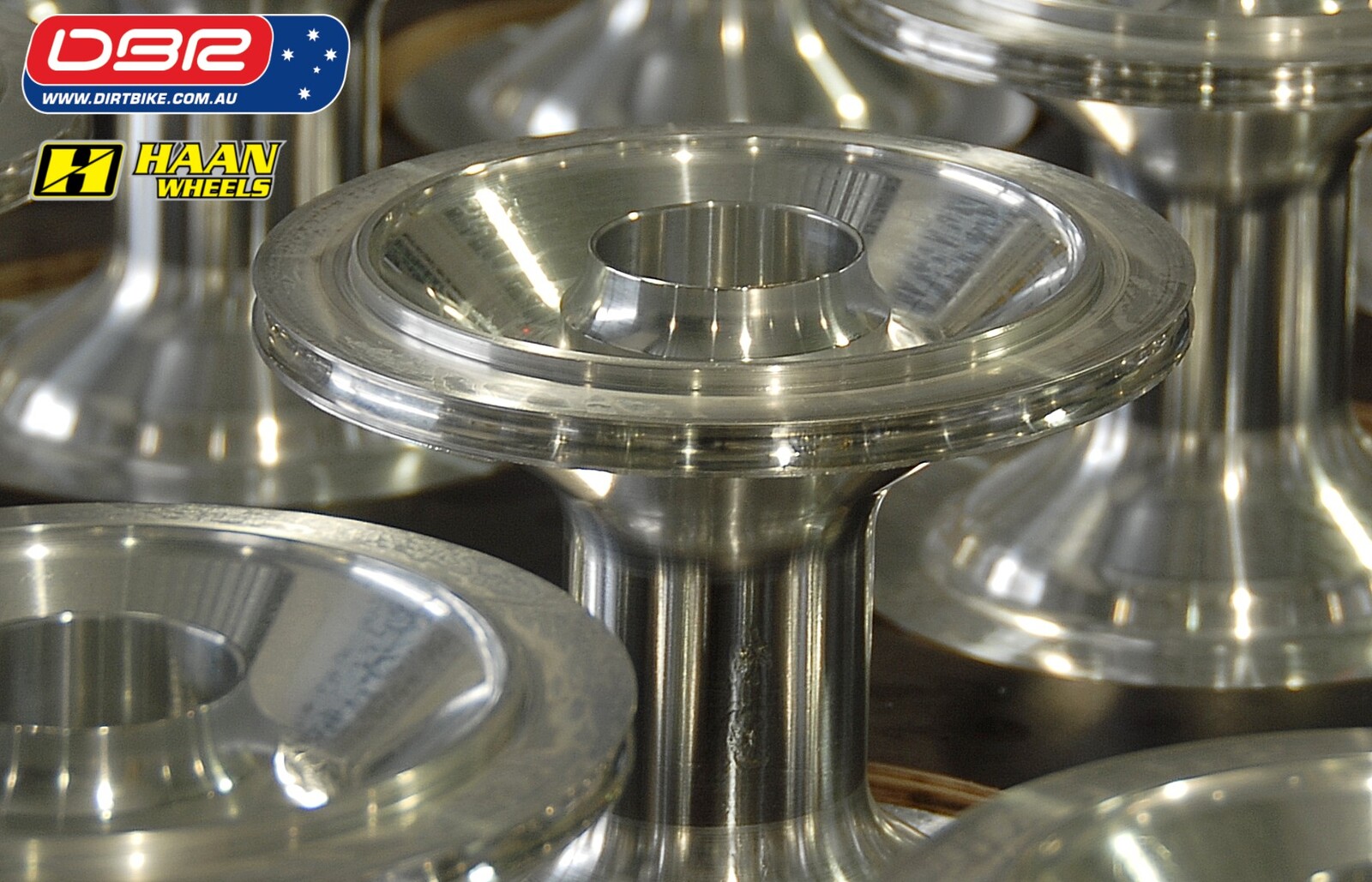

The Haan Wheels hubs are 100% made in the Netherlands. The hubs are made from 1 piece billet 6082 T6 alloy on the newest CNC machines. Hubs are anodized and available in various colours.
- Hubs are CNC machined from 1 piece billet 6082 T6 alloy.
- Original brake disc and sprocket can be mounted on the hubs.
- Hubs are fitted with Koyo bearing, no special sizes but easy available bearings worldwide.
- Most rear hubs have 3 bearings instead of 2 as some original wheels have
- All 65/85 cc hubs have 32 spokes, all other hubs have 36.
- Center tube and spacer are made of 7075 hard alloy.
- Hubs are delivered with all mounting hardware.

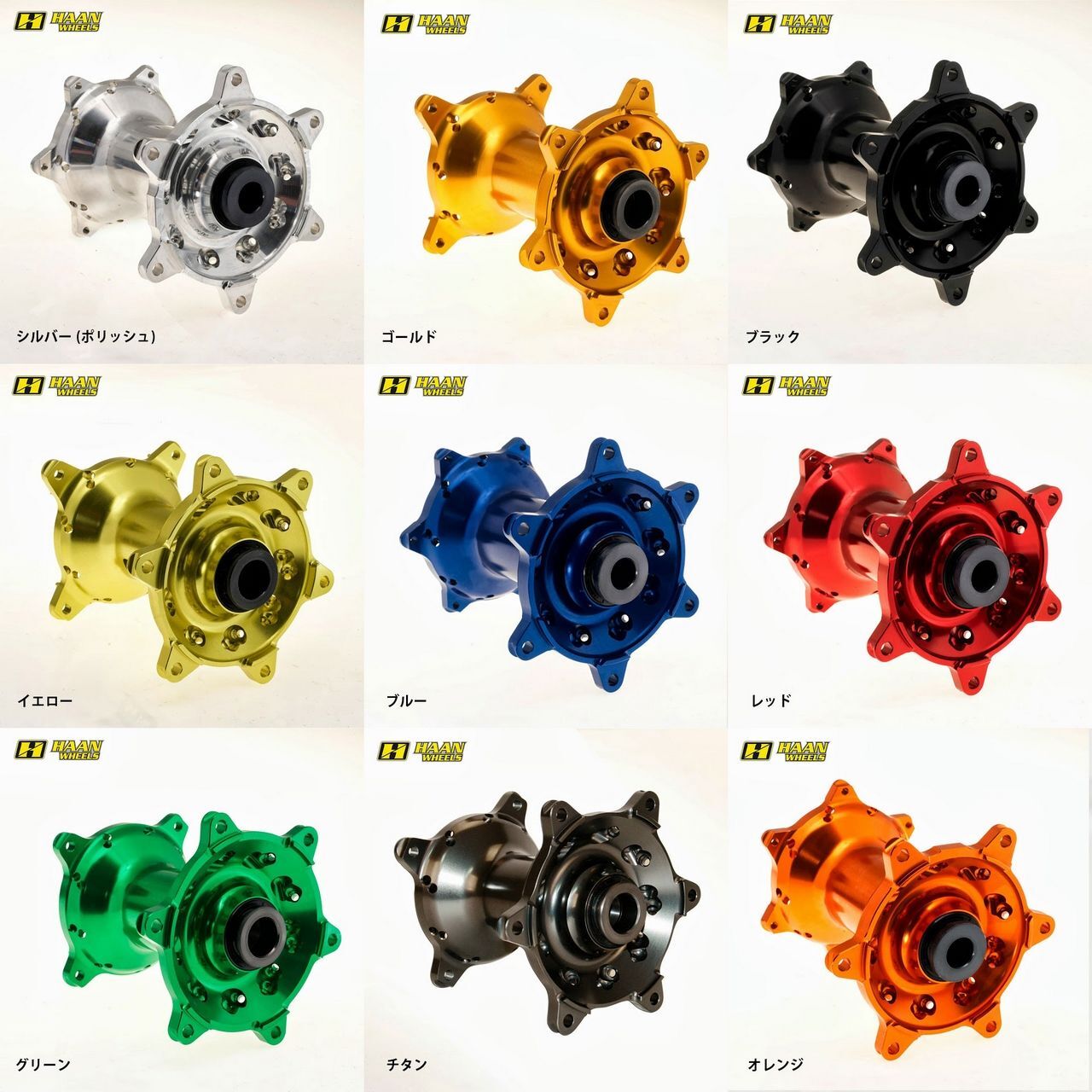

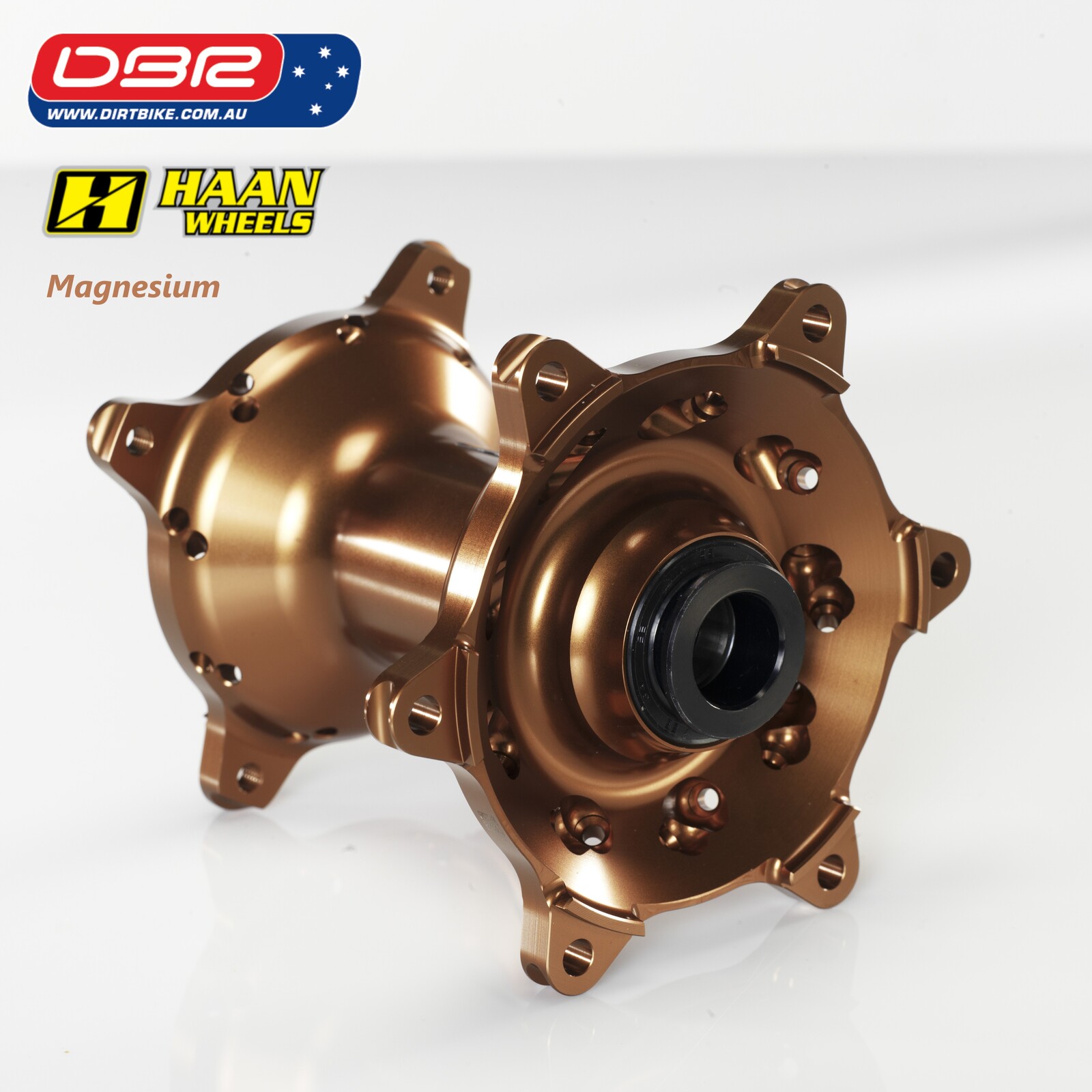

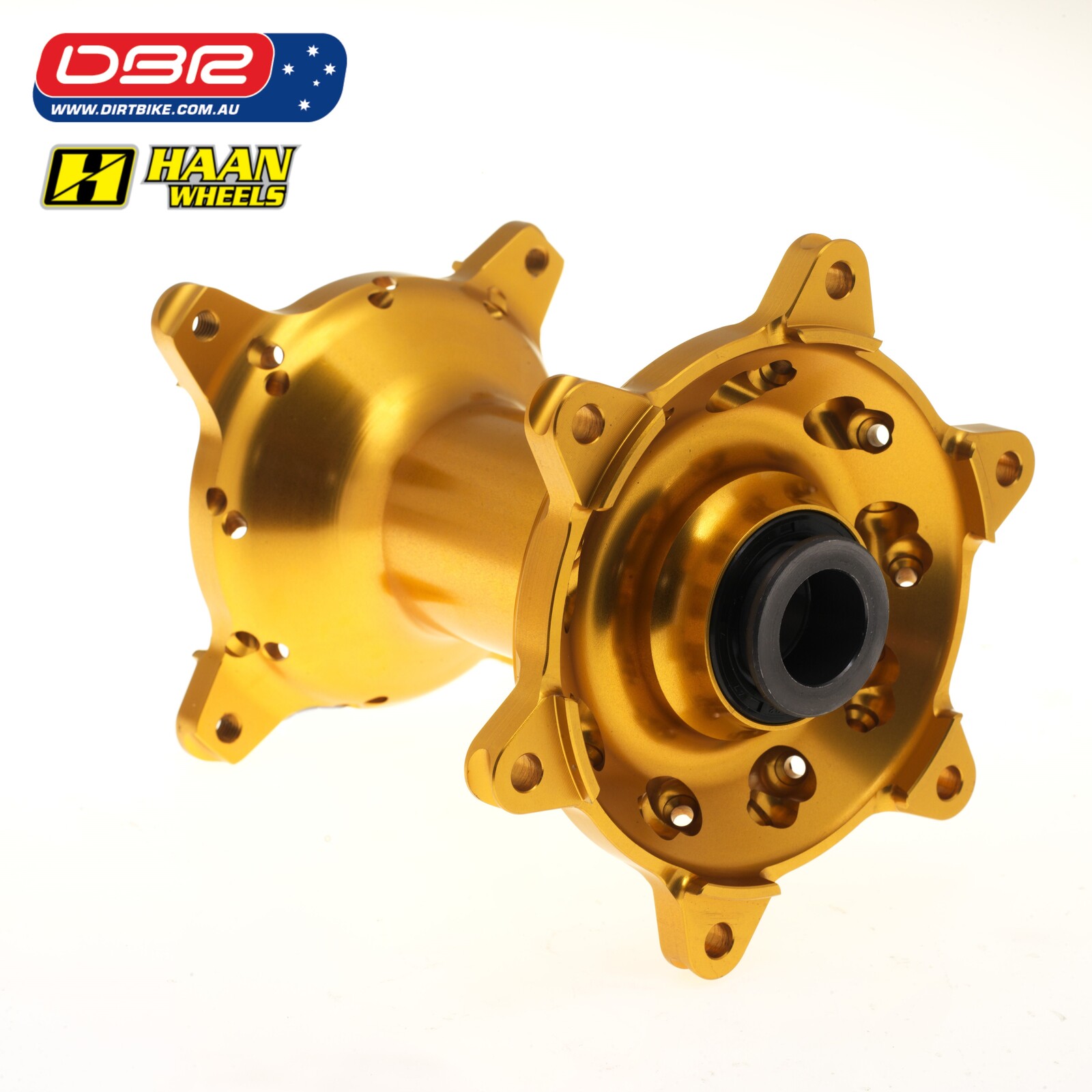

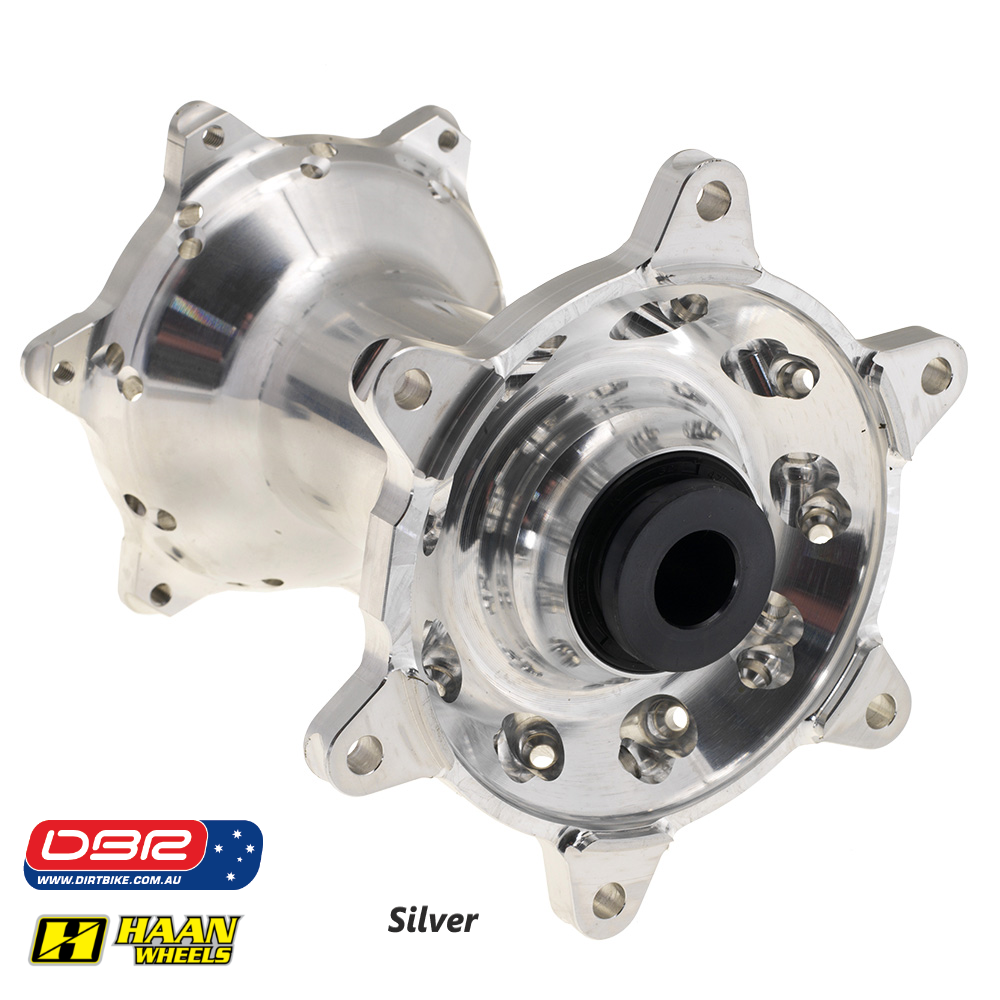

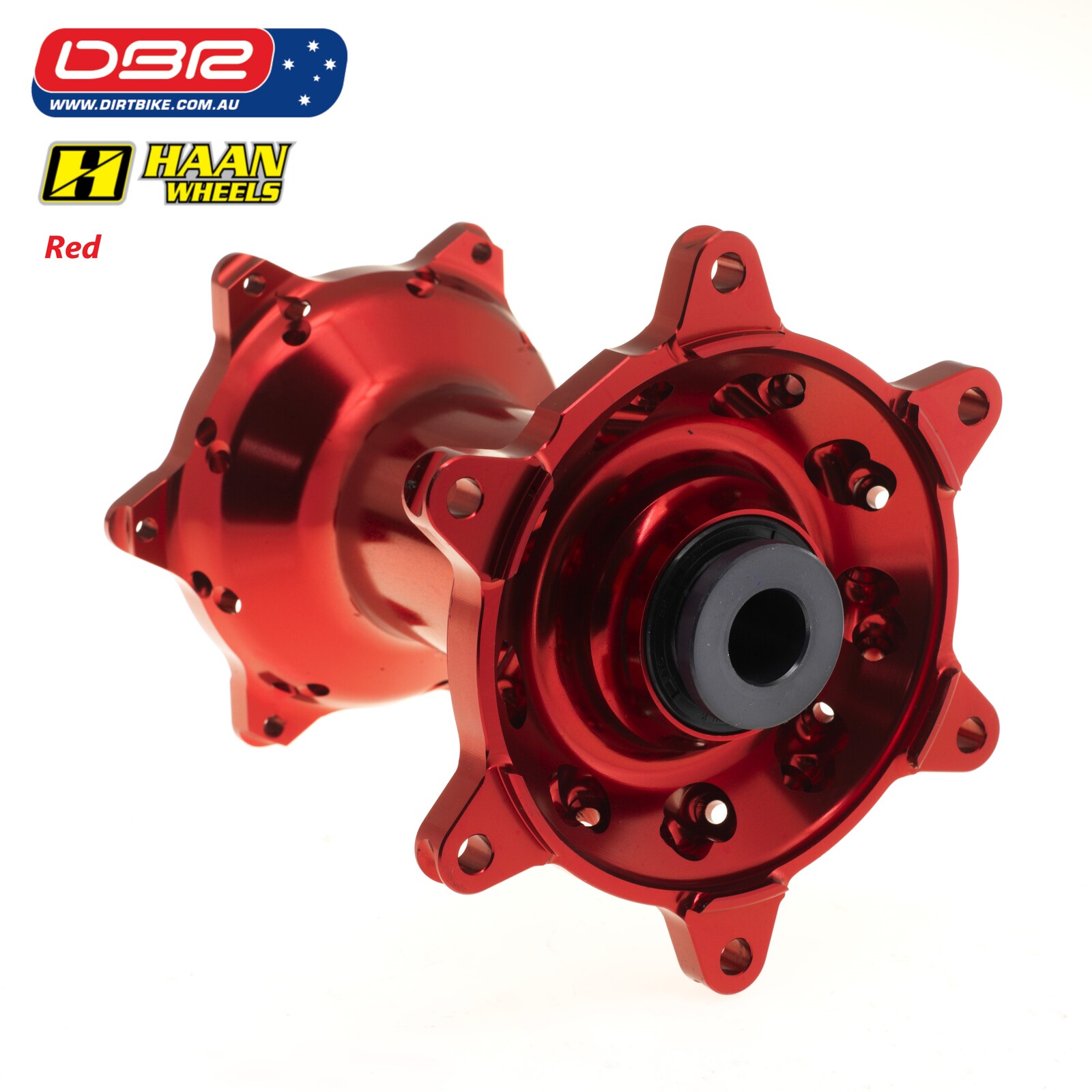

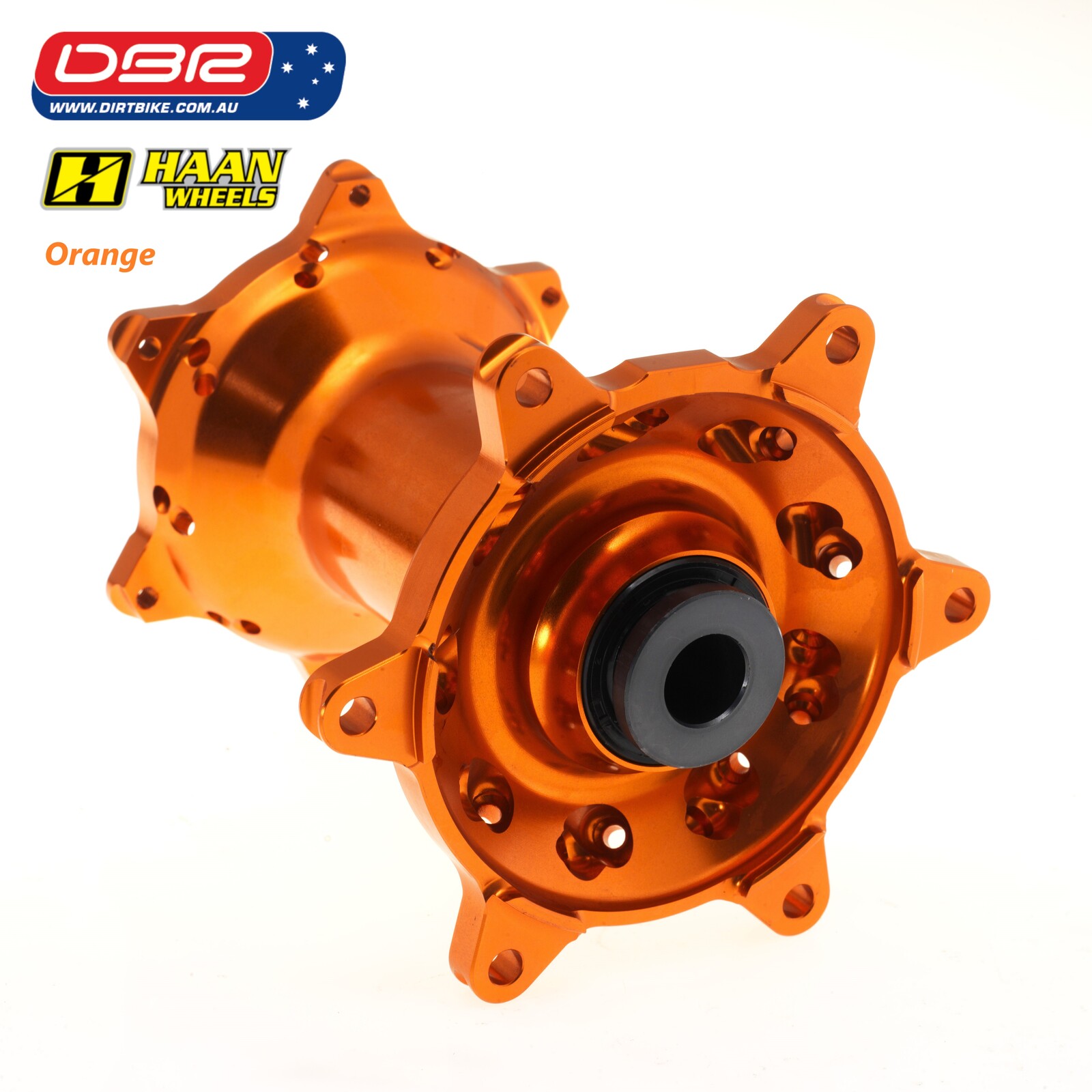

Haan Wheels hubs are available in Silver, Gold, Black, Yellow, Blue, Red, Green, Titanium, Magnesium and Orange.

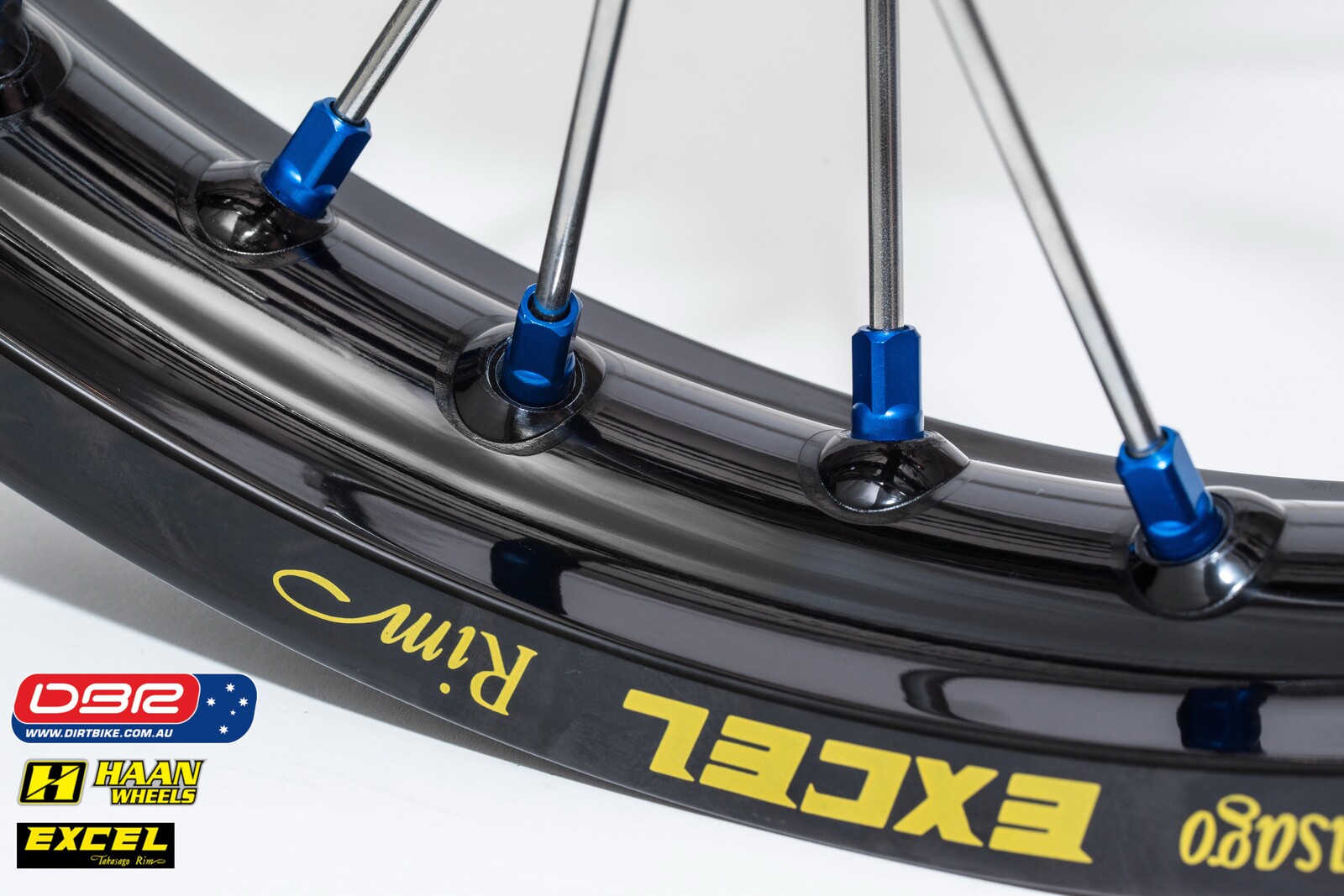

EXCEL TAKASAGO RIMS
RK Excel rims are made of 7000 series alloy and are for many years used by almost all top riders. The RK Excel rim keeps on being the best, strongest and most used rim on the market.
- Excel Takasago Rims are the benchmark in offroad racing.
- Excel enduro rims are designed to perform in the toughest competition.
- Rims available from 65cc bikes up to the KTM Adventure 1290.
- Excel Takasago Rims can be laced to stock, other brands and our own Haan hubs.
- Made in Japan
Excel Takasago Rims are available in Black, Silver, Gold, Yellow and Blue.
EXCEL A60 RIMS
Excel’s A60 rims are 15% stronger than the Excel Takasago rim, while retaining the same low weight.
- A60 rims feature a V-Curve profile that helps reduce mud buildup
- A60 rims can be laced to stock, other brands and our own Haan hubs.
- Available sizes: 21×1.60, 18×2.15, 19×1.85 and 19×2.15
- Made in Japan
Excel A60 Rims are available in Black
HAAN SPOKES | motorcross

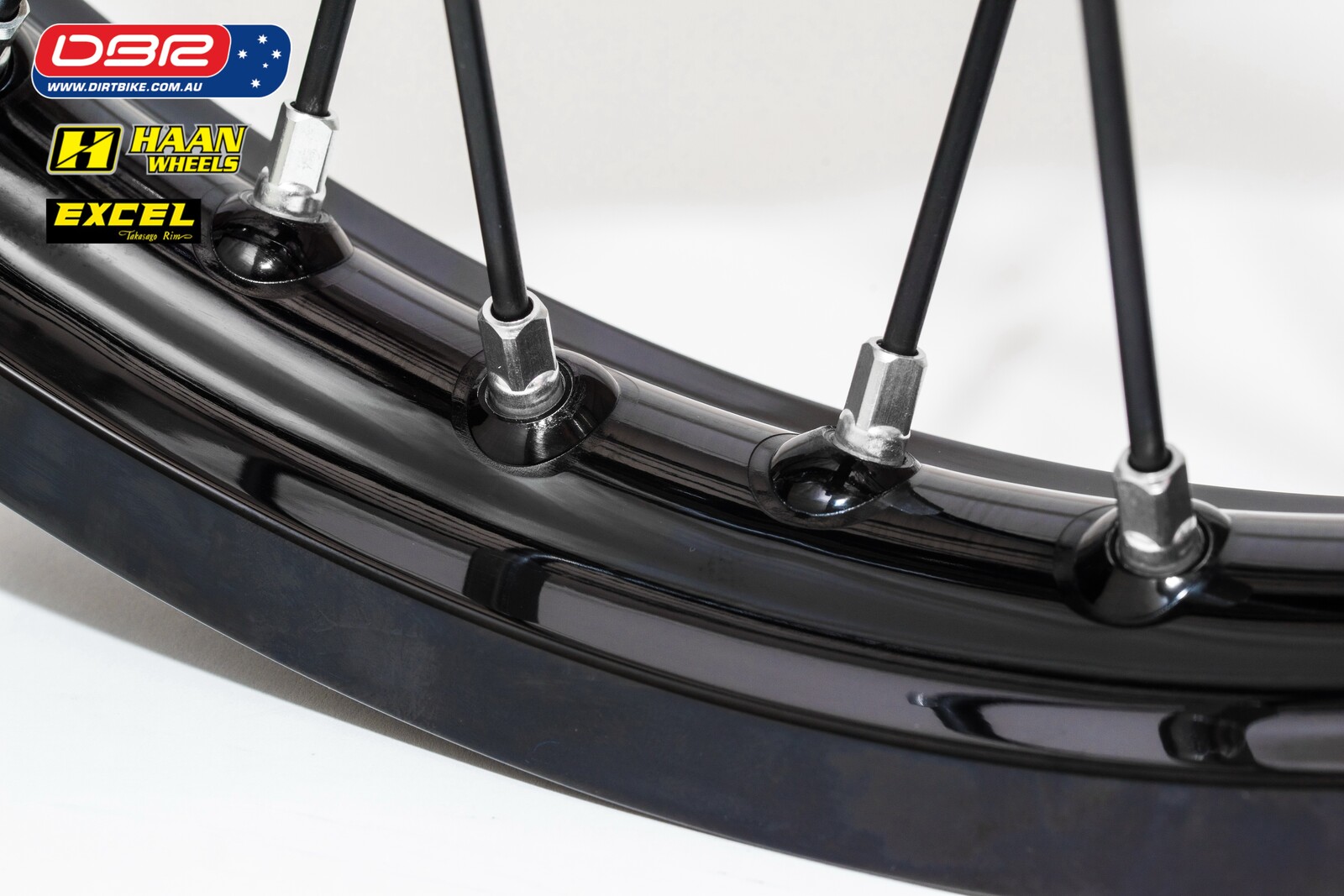

Our spokes are made from a special stainless steel. The spokes are made to the needed size in our factory so we can make every spoke kit for different brands and type’s and also for older bikes.
- Up to 30% stronger than original spokes.
- Spoke kits are supplied with matching nipples.
- The Haan black spokes are the same spokes as the stainless and are threaded with a chemical coating.
Haan Wheels spokes are available in Black or Stainless.
Nipples are available in Black, Silver, Gold, Yellow, Red, Green, Orange and Blue.
