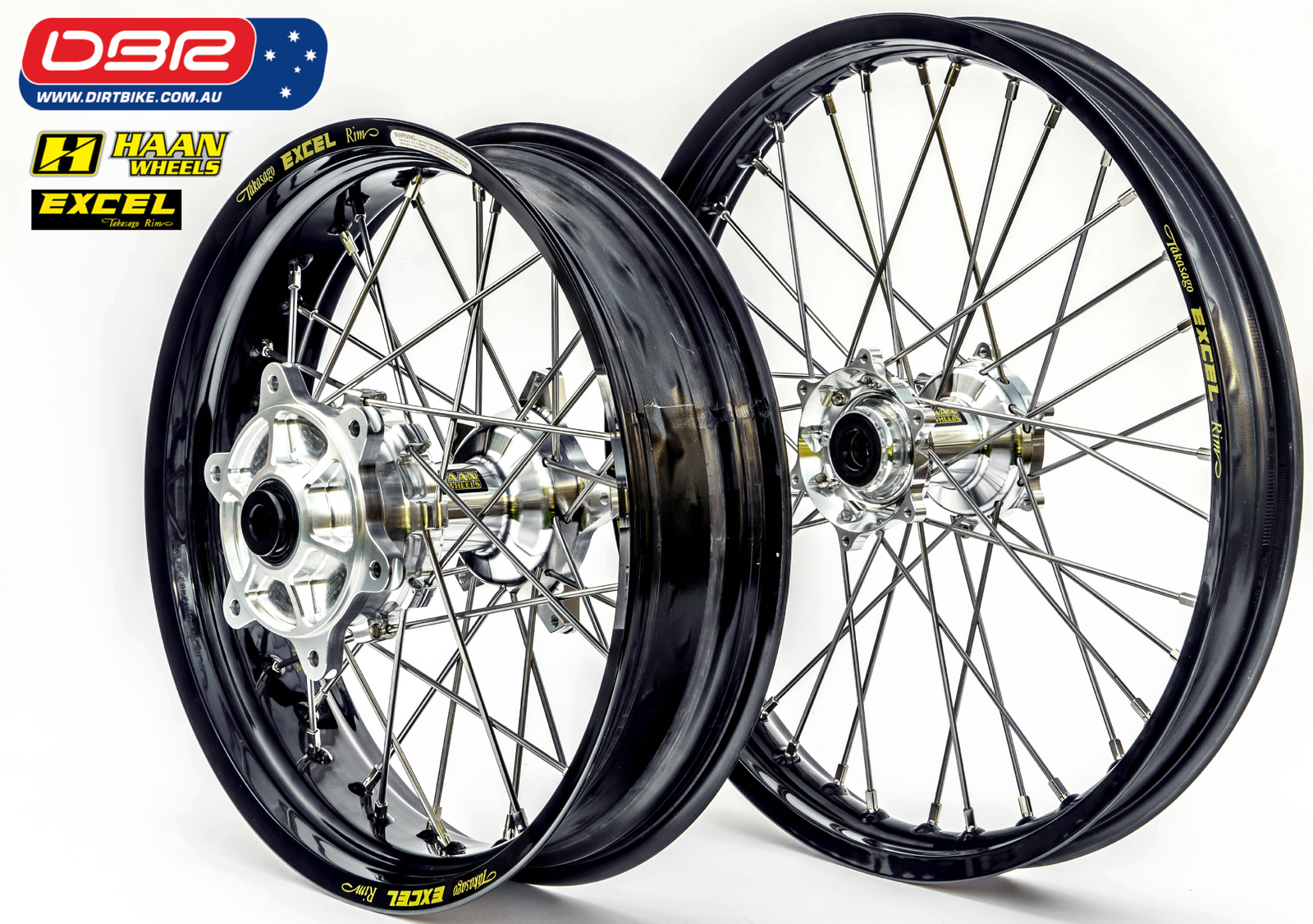

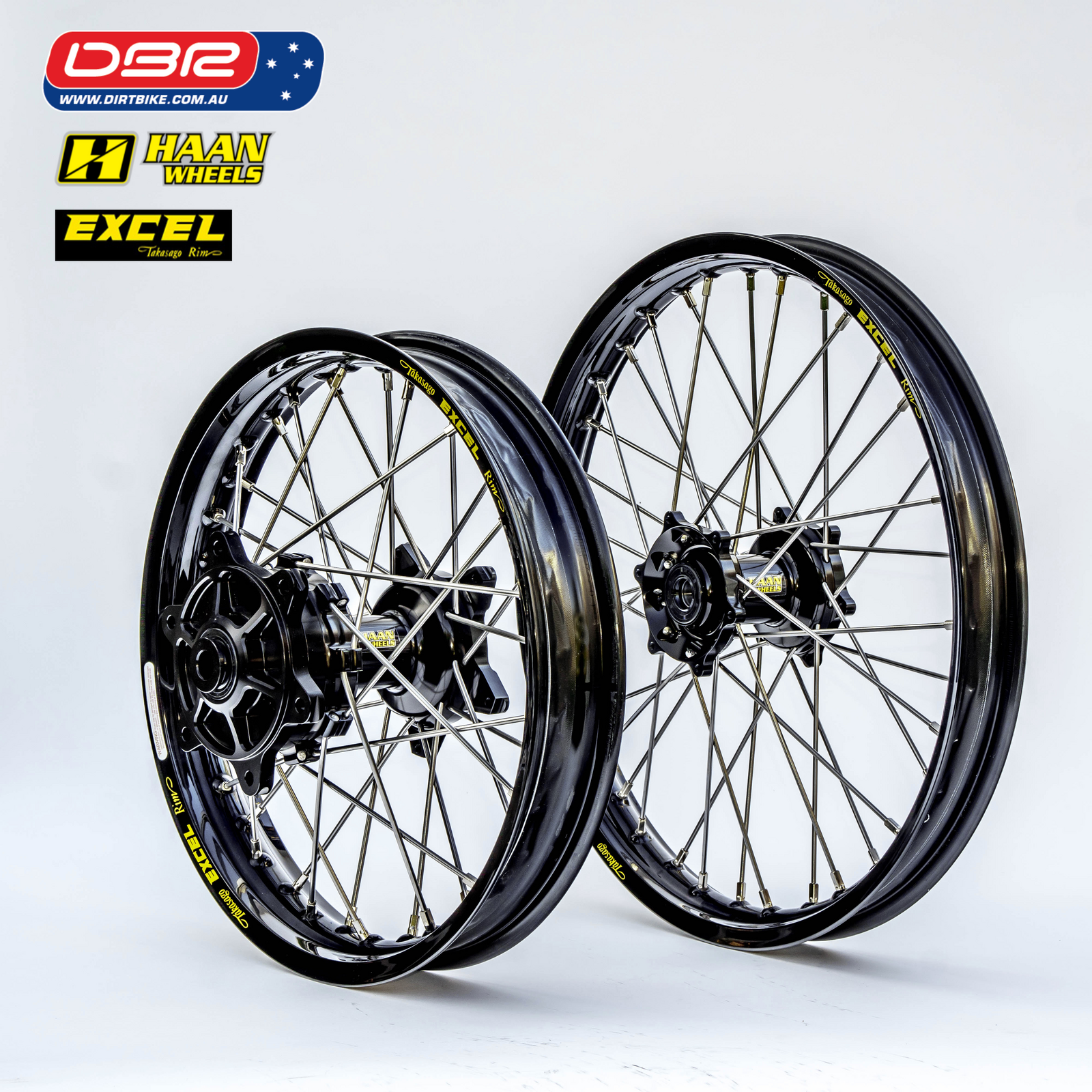

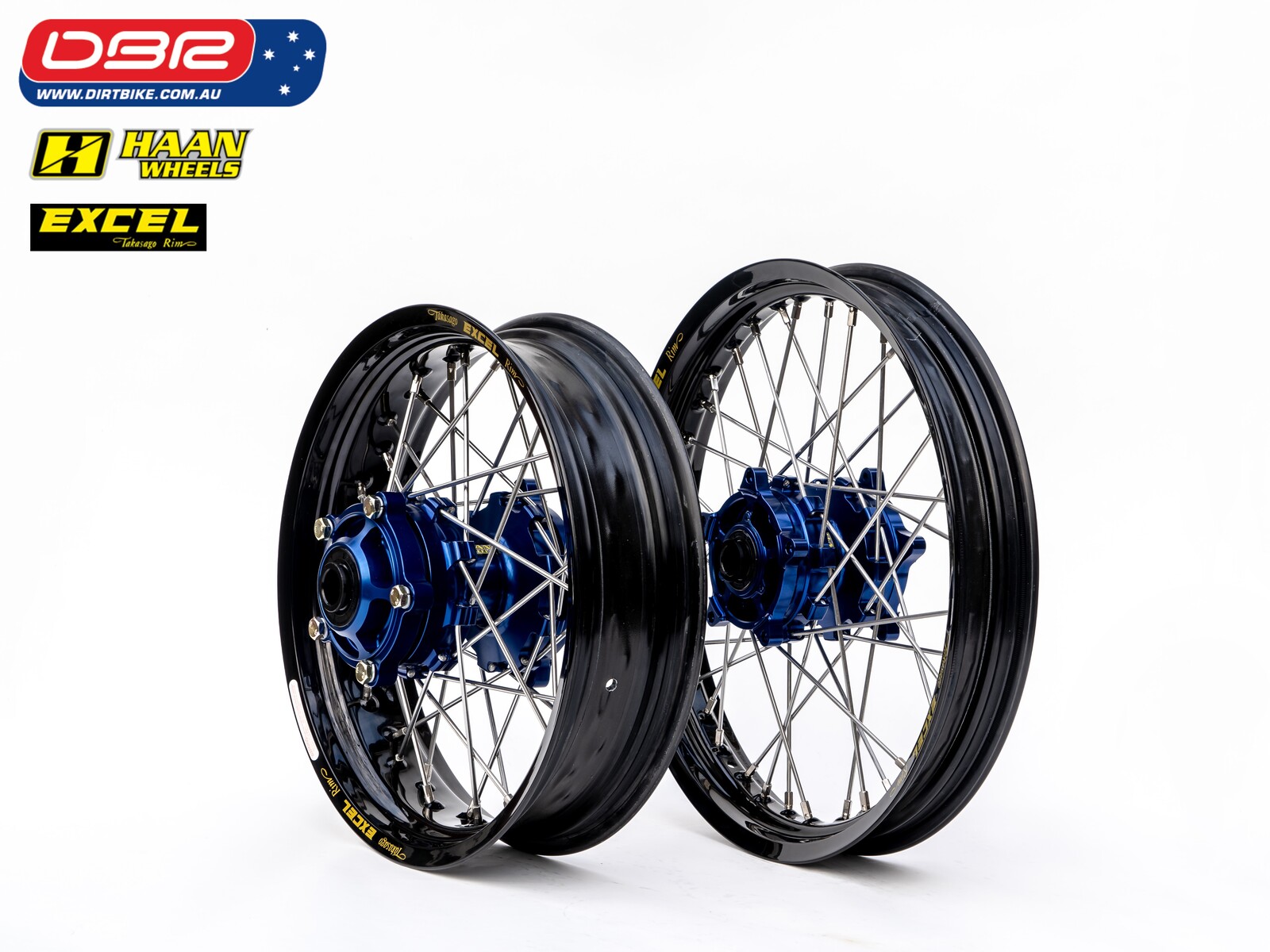

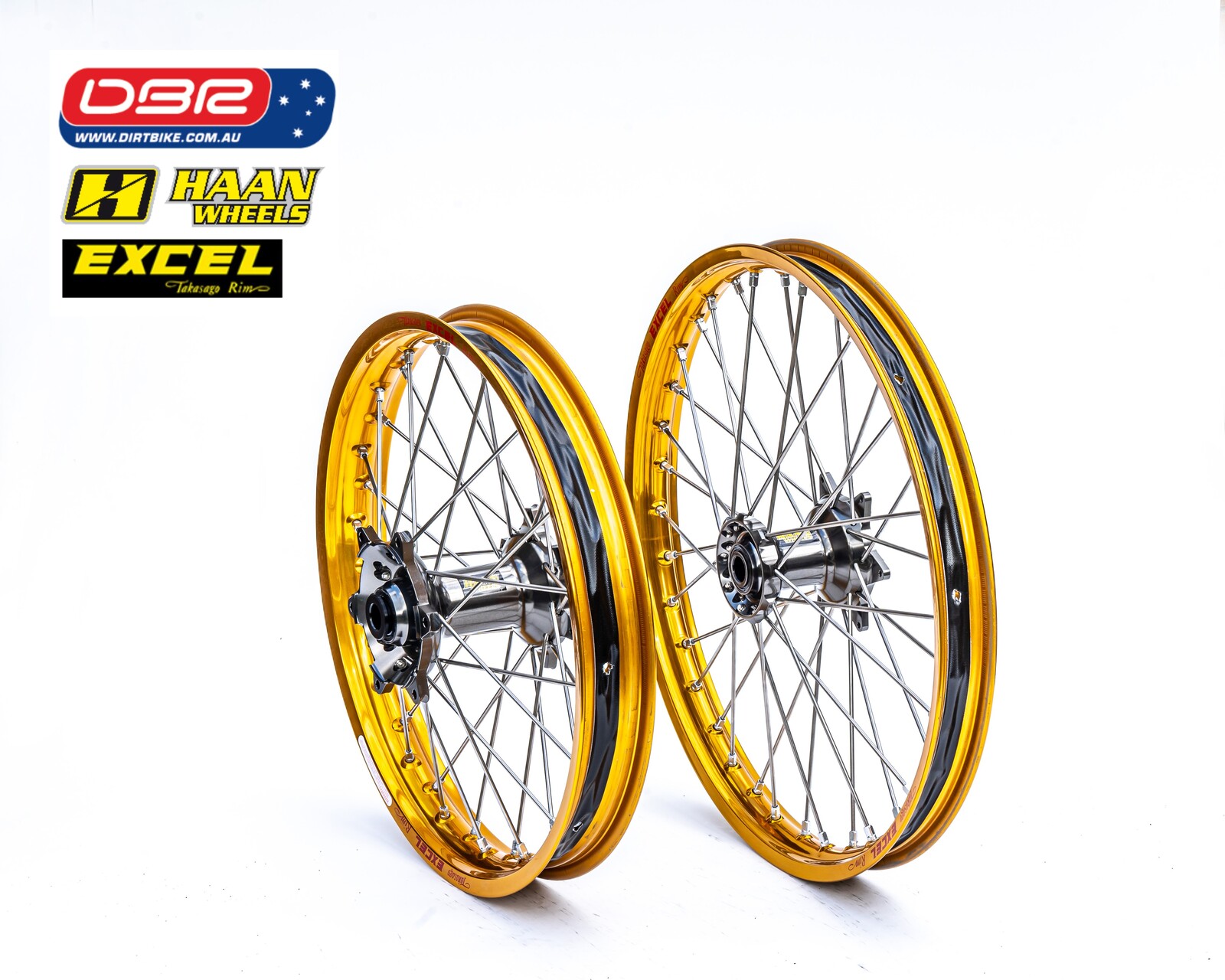

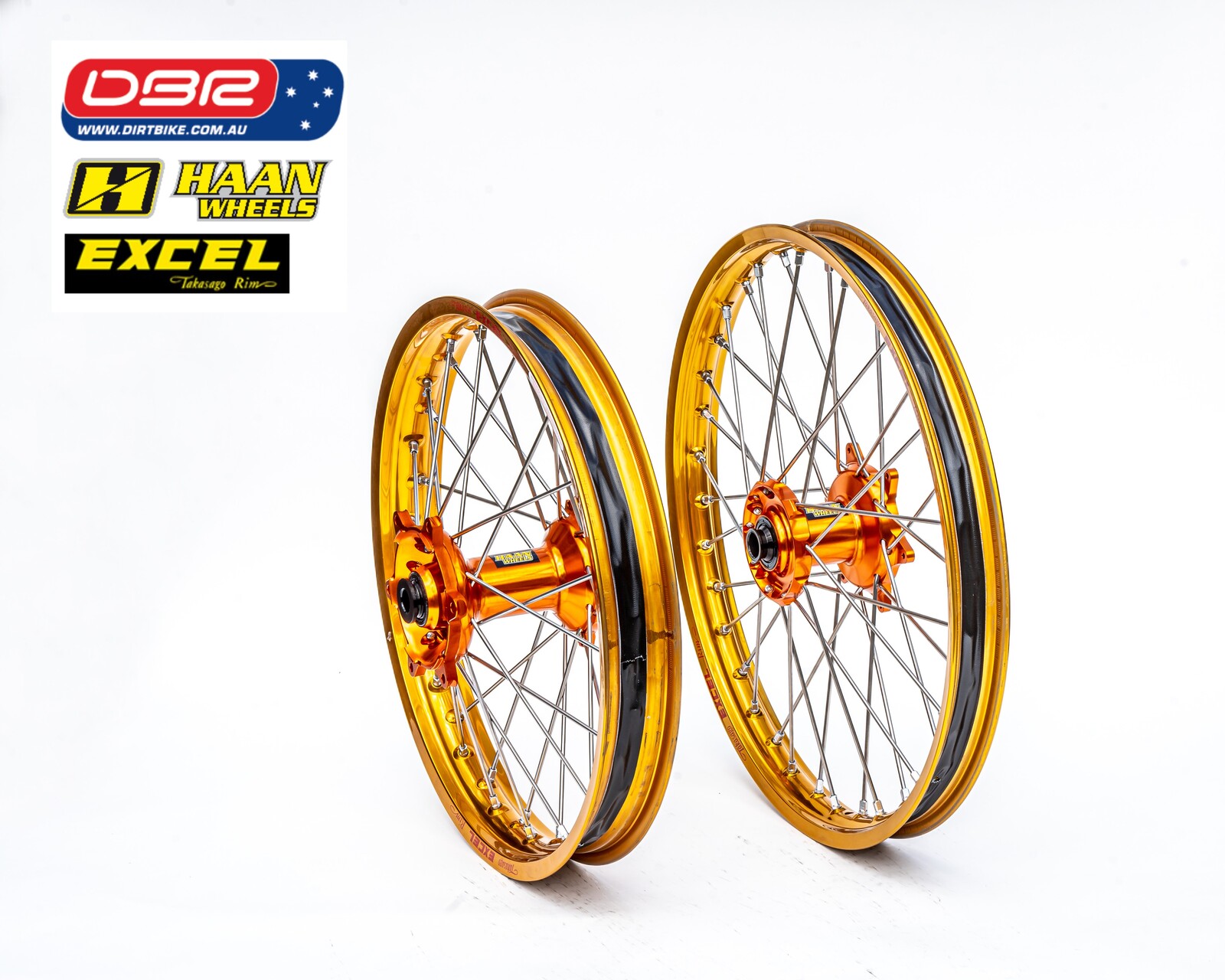

Haan Wheels Australia Husqvarna 901 Norden "Factory Rally". Desert Spec Wheel Set 21"Front 18" Rear Cush Drive

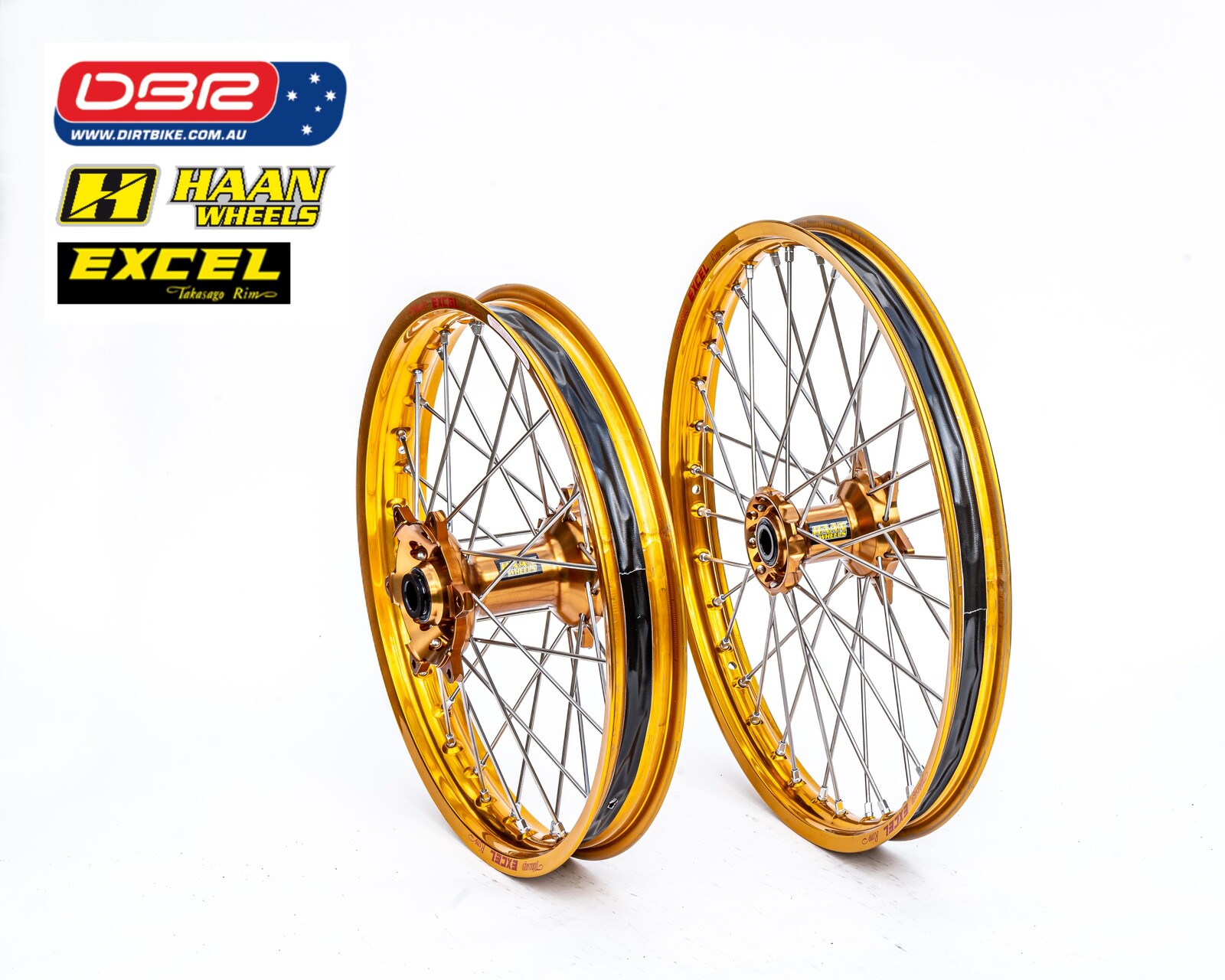

Husqvarna 901 Norden "Factory Rally". 21"Front 18" Rear

The "Factory HAAN Wheelset" is fully built at the Factory in the Netherlands for you. Some wheels sizes and colour combos are in stock and available for immediate shipping. Please phone to discuss what might be in stock in Australia. All other sets are custom built at the Factory to your specifications. Wheel sets can take 4 to 8 weeks usually depending on size , colour combinations and availability. Thanks for your patience as it is worth waiting for the worlds best True "Factory" wheelsets.

Available Options

Calculate Shipping

Australia Post - $88.00
Express Post





Used in Australia by Factory Teams such as GHR Honda and leading privateers to win the A4DE / AORC / Finke / Hattah Outright !!

Used by 50% of world MX teams and Yamahas Factory Dakar Effort.

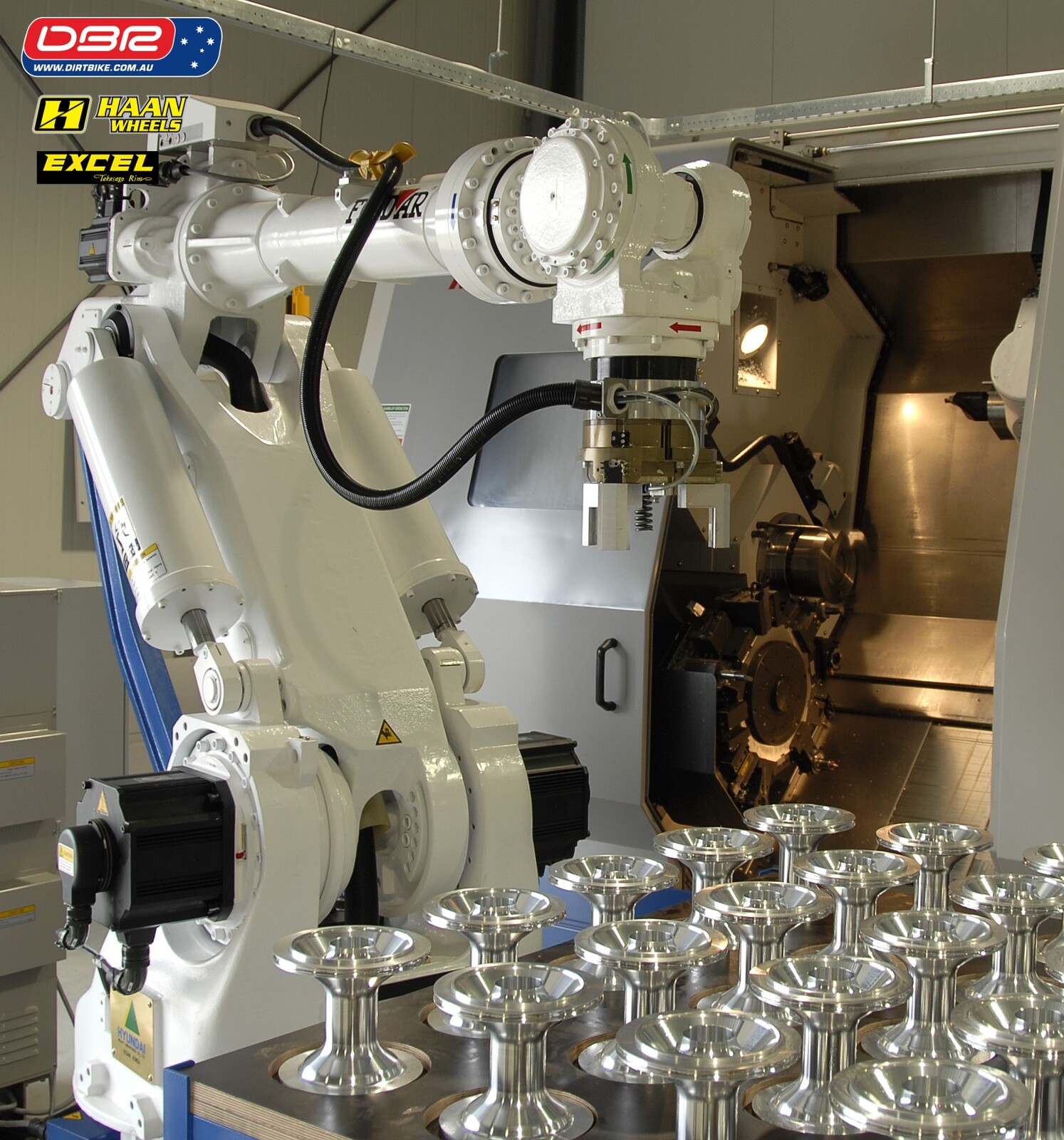

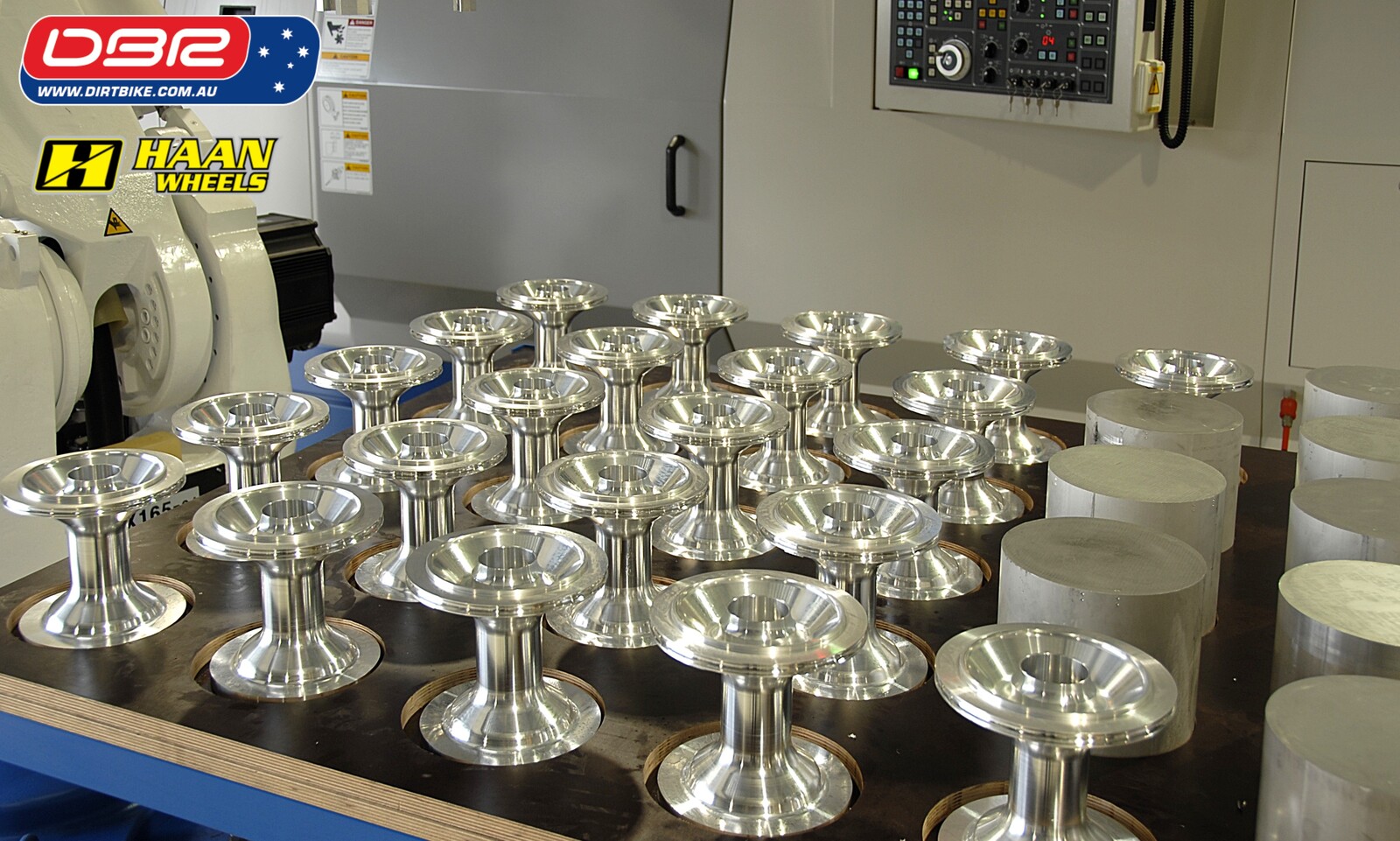

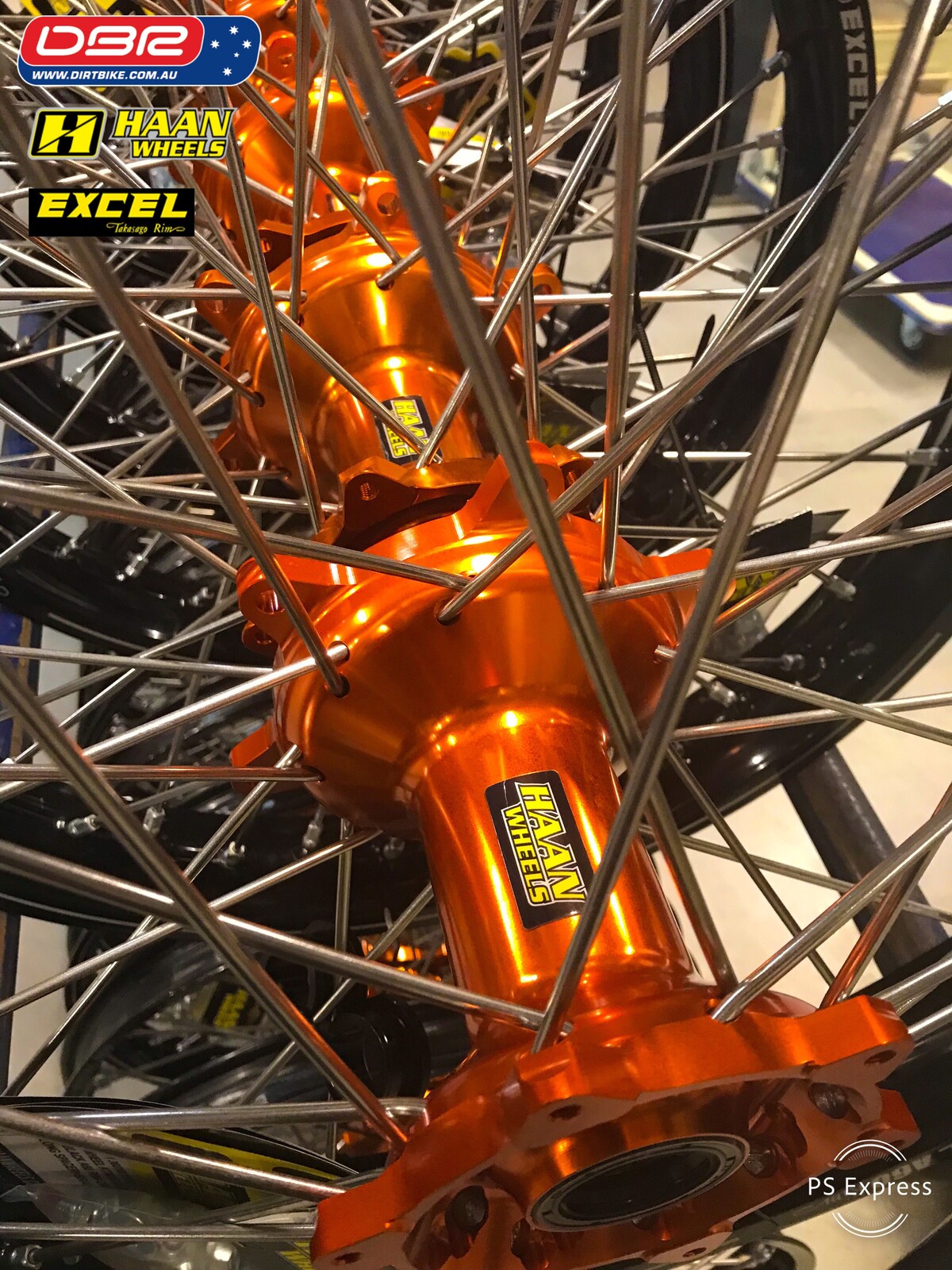

The Haan Wheels hubs are 100% made in the Netherlands. The hubs are made from 1 piece billet 6082 T6 alloy on the newest CNC machines. Hubs are anodized and available in various colours.

  • Hubs are CNC machined from 1 piece billet 6082 T6 alloy.
  • Original brake disc and sprocket can be mounted on the hubs.
  • Hubs are fitted with Koyo bearing, no special sizes but easy available bearings worldwide.
  • Most rear hubs have 3 bearings instead of 2 as some original wheels have
  • All 65/85 cc hubs have 32 spokes, all other hubs have 36.
  • Center tube and spacer are made of 7075 hard alloy.
  • Hubs are delivered with all mounting hardware.

Haan Wheels hubs are available in Black, Silver, Gold, Yellow, Red, Green, Titanium, Magnesium, Orange and Blue.

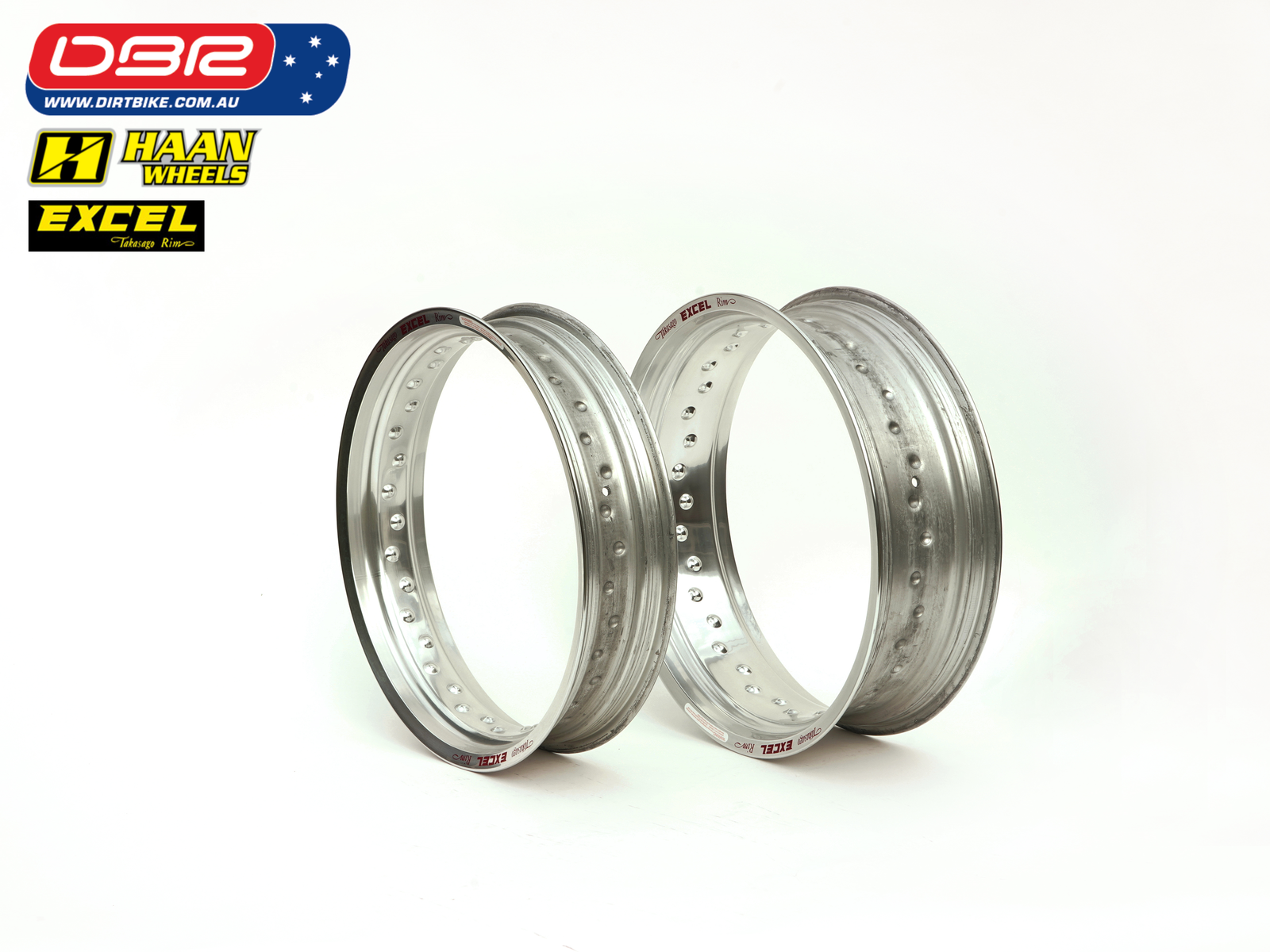

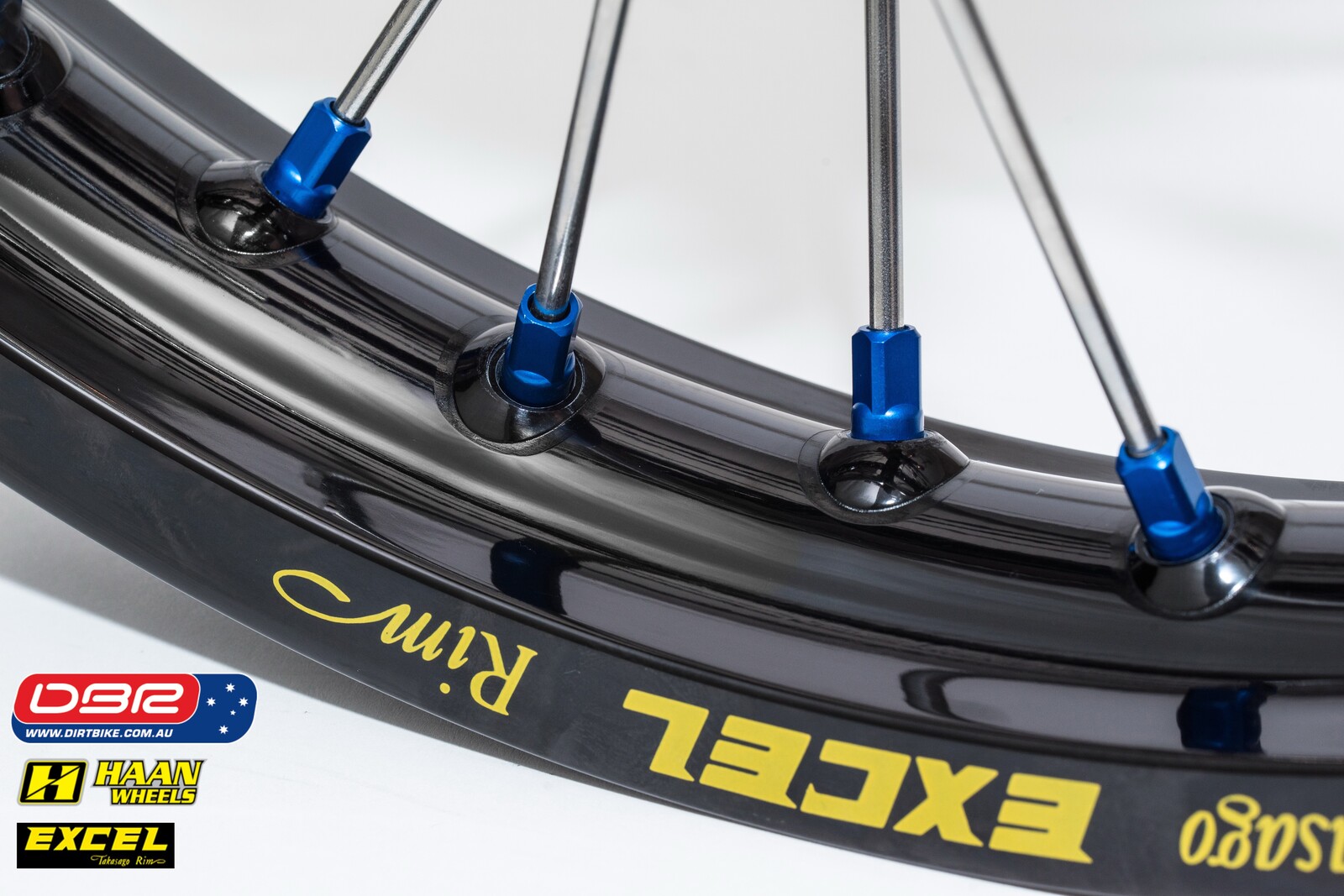

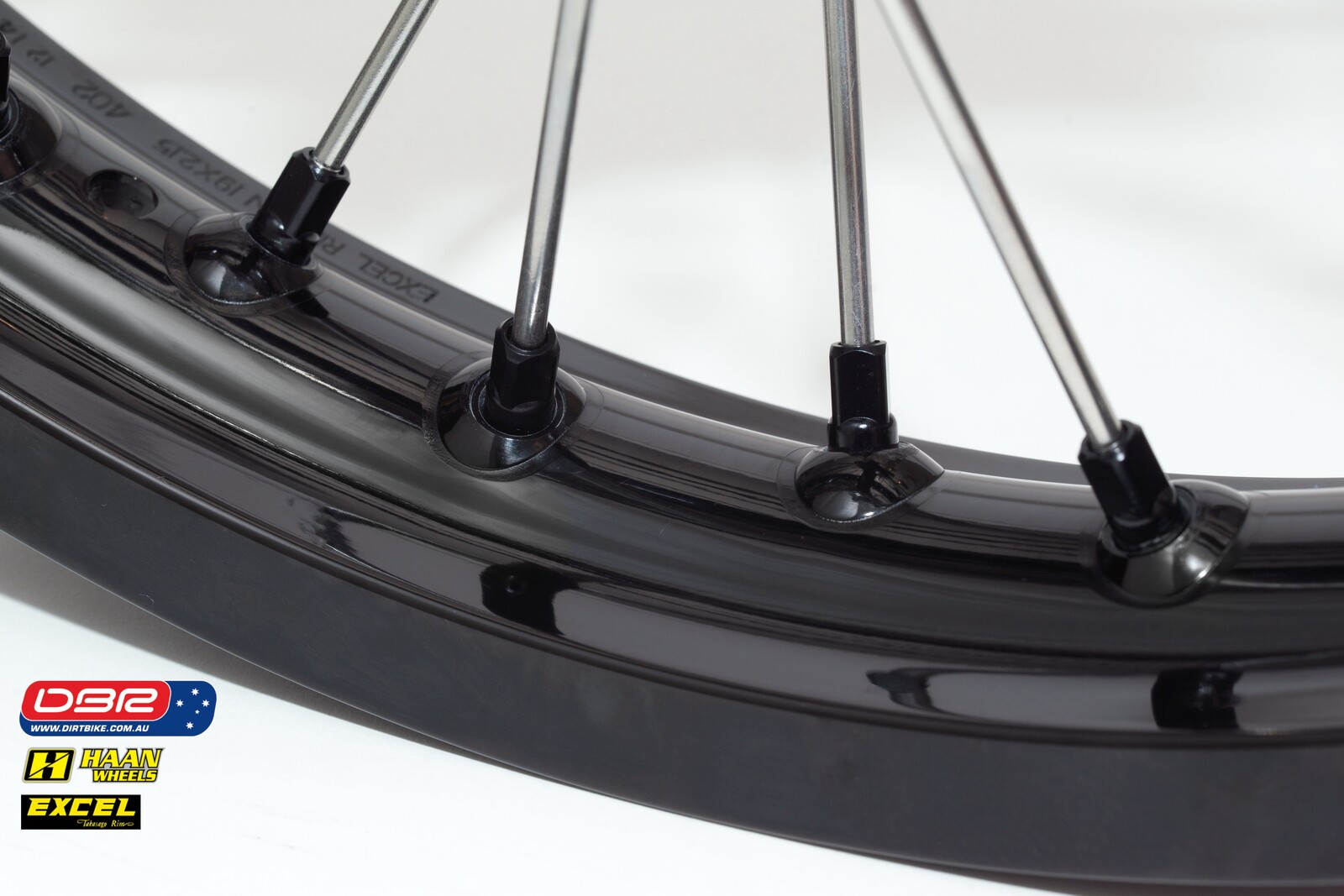

RK Excel rims are made of 7000 series alloy and are for many years used by almost all top riders. The RK Excel rim keeps on being the best, strongest and most used rim on the market.

  • Excel Takasago Rims are the benchmark in offroad racing.
  • Excel enduro rims are designed to perform in the toughest competition.
  • Rims available from 65cc bikes up to the KTM Adventure 1290.
  • Excel Takasago Rims can be laced to stock, other brands and our own Haan hubs.
  • Made in Japan

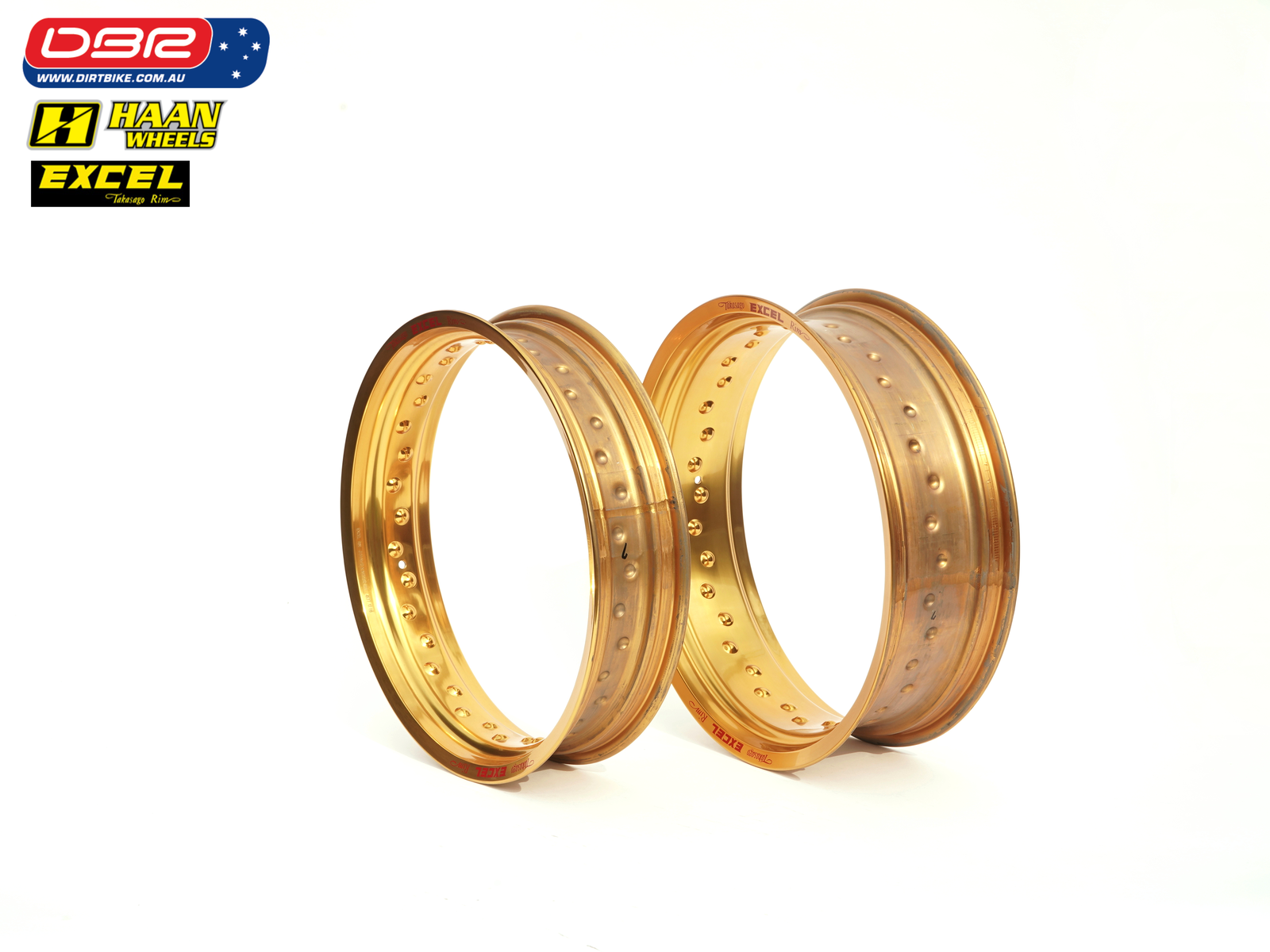

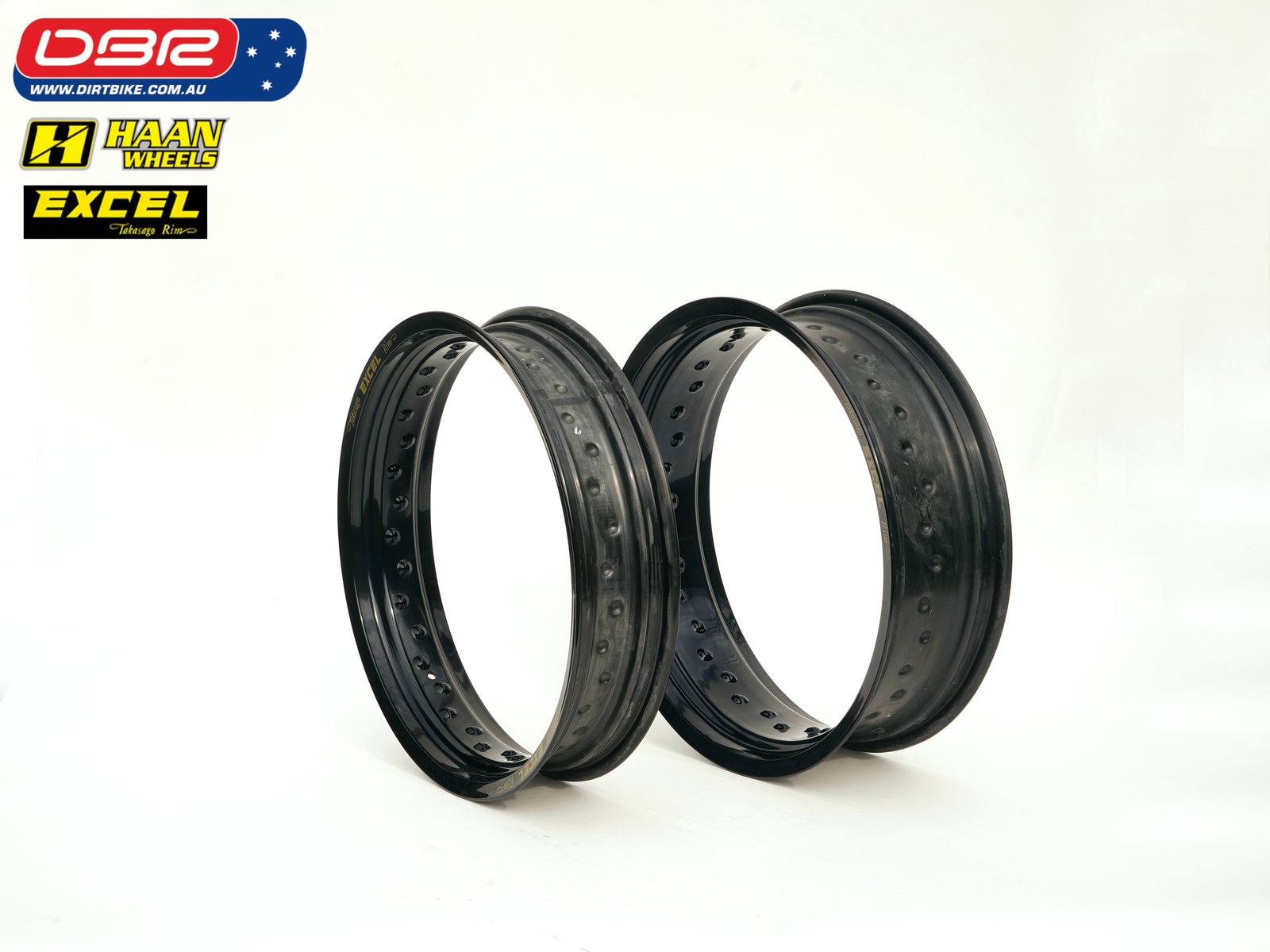

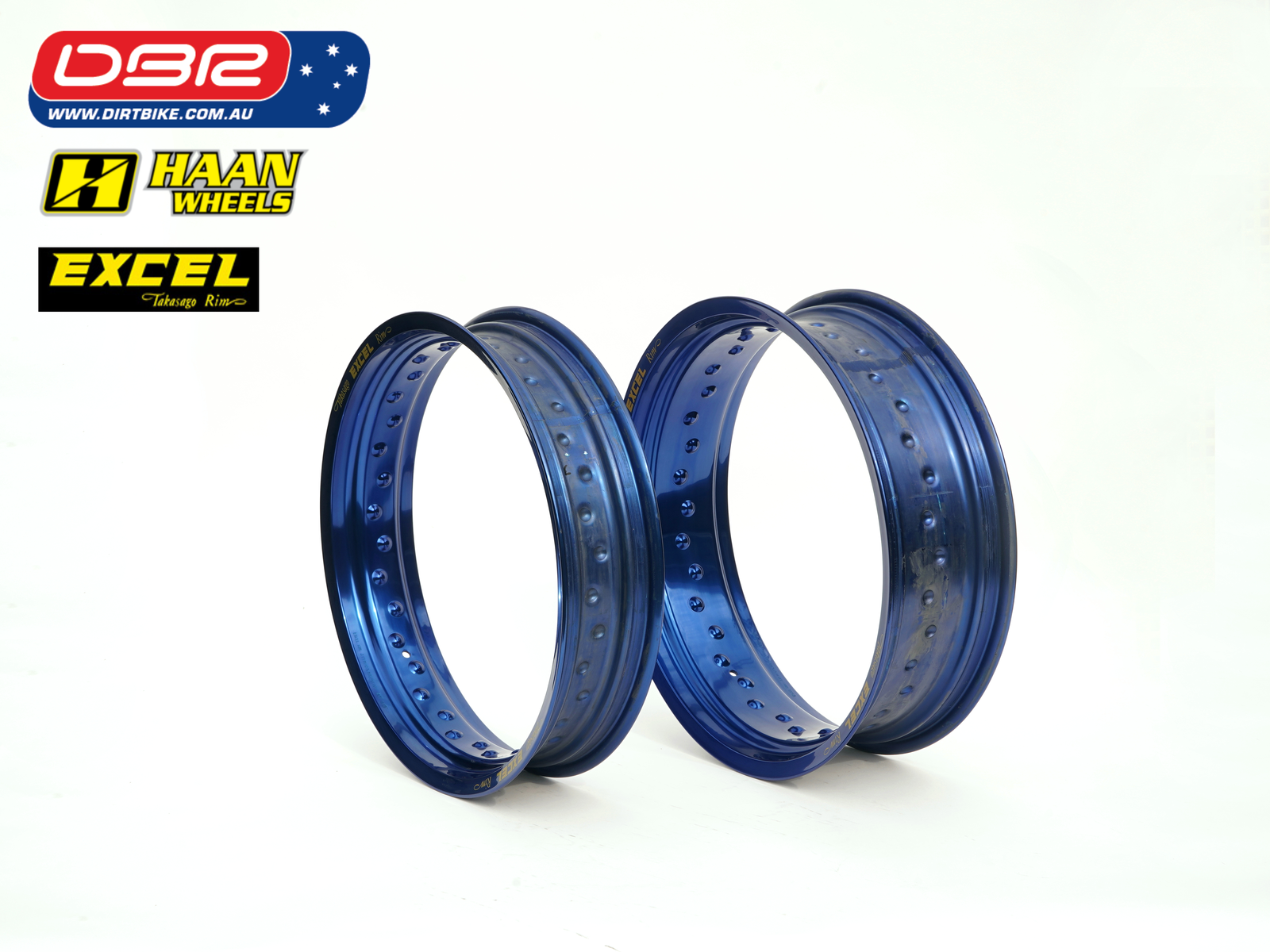

Excel Takasago Rims are available in Black, Silver, Gold, Yellow and Blue.

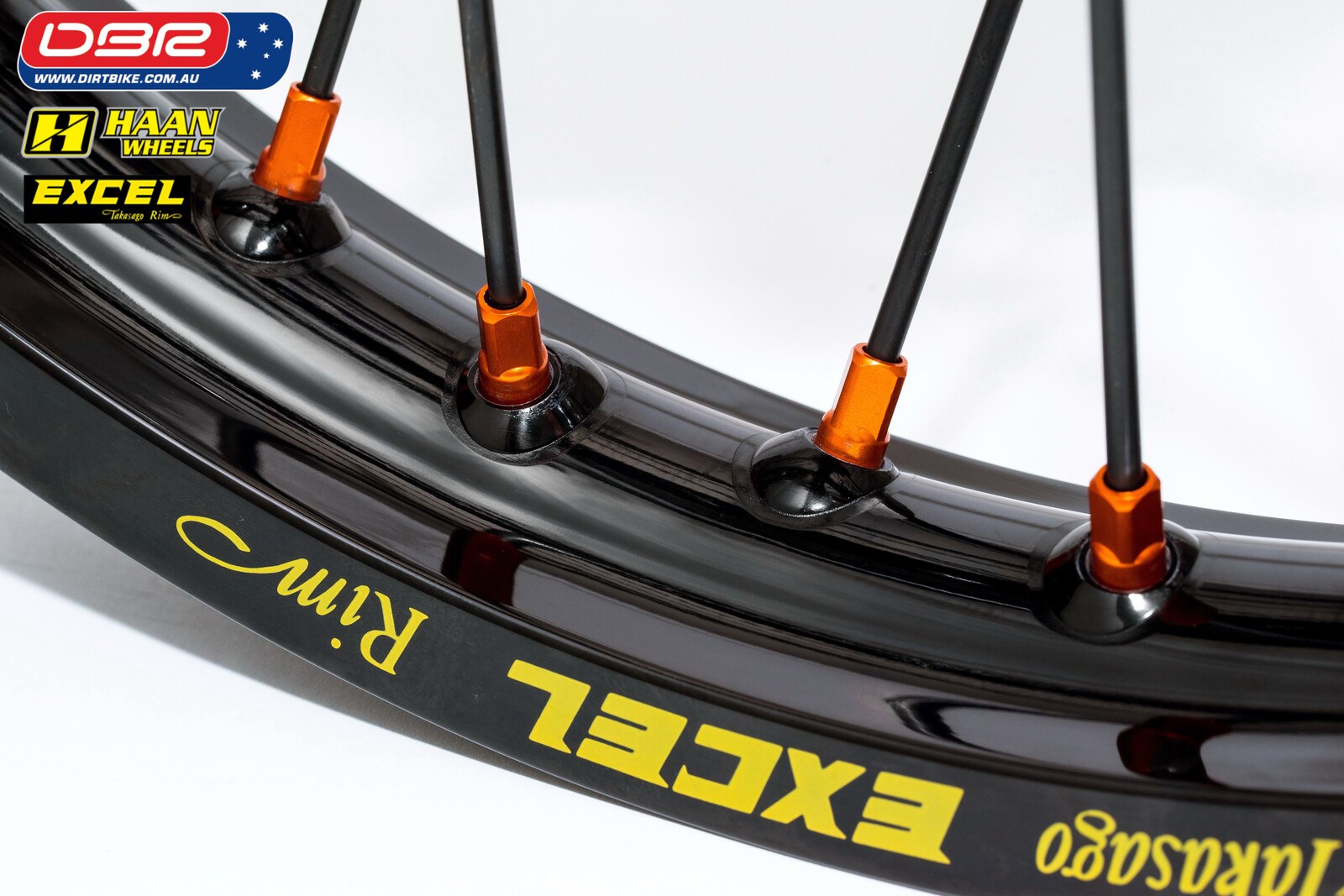

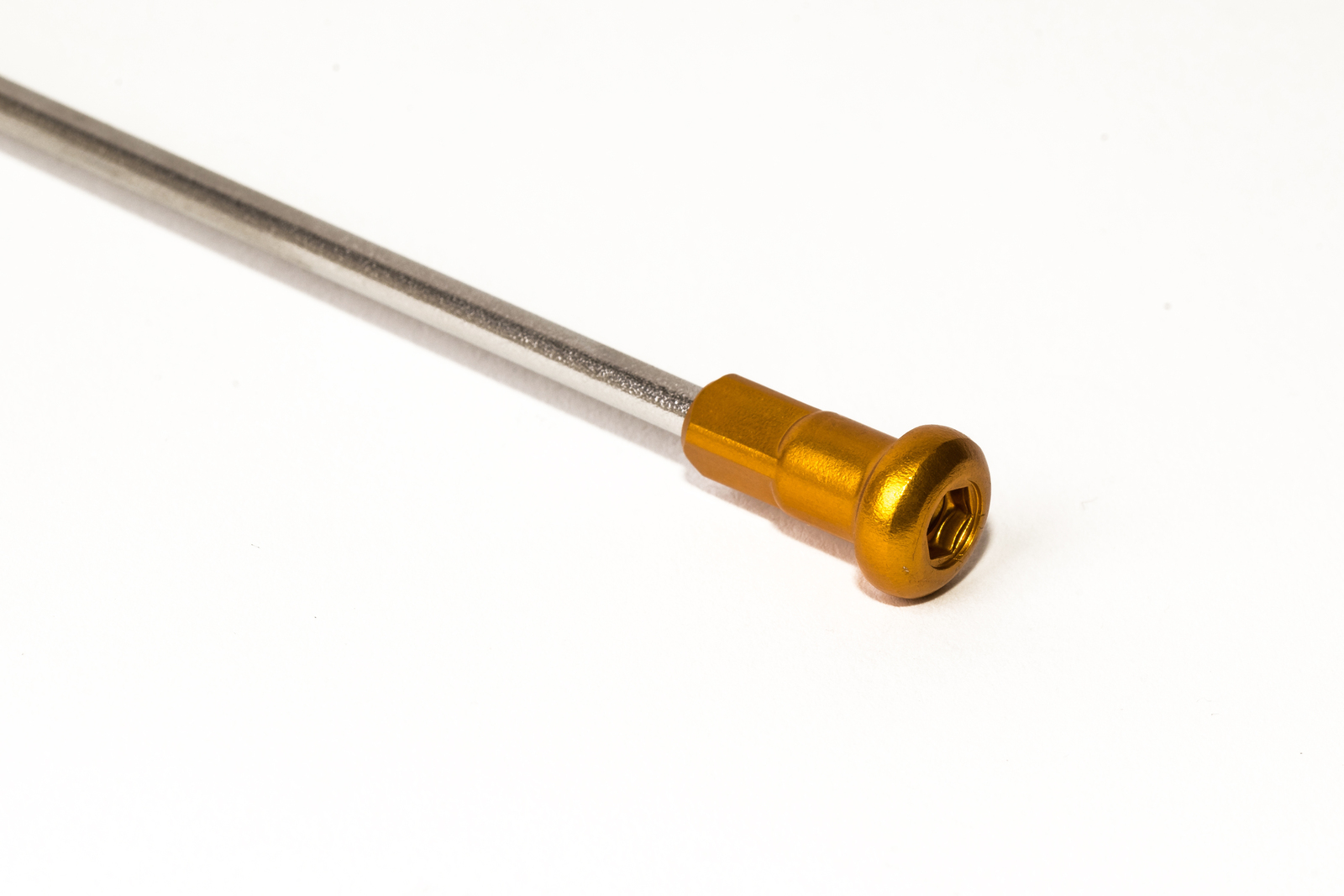

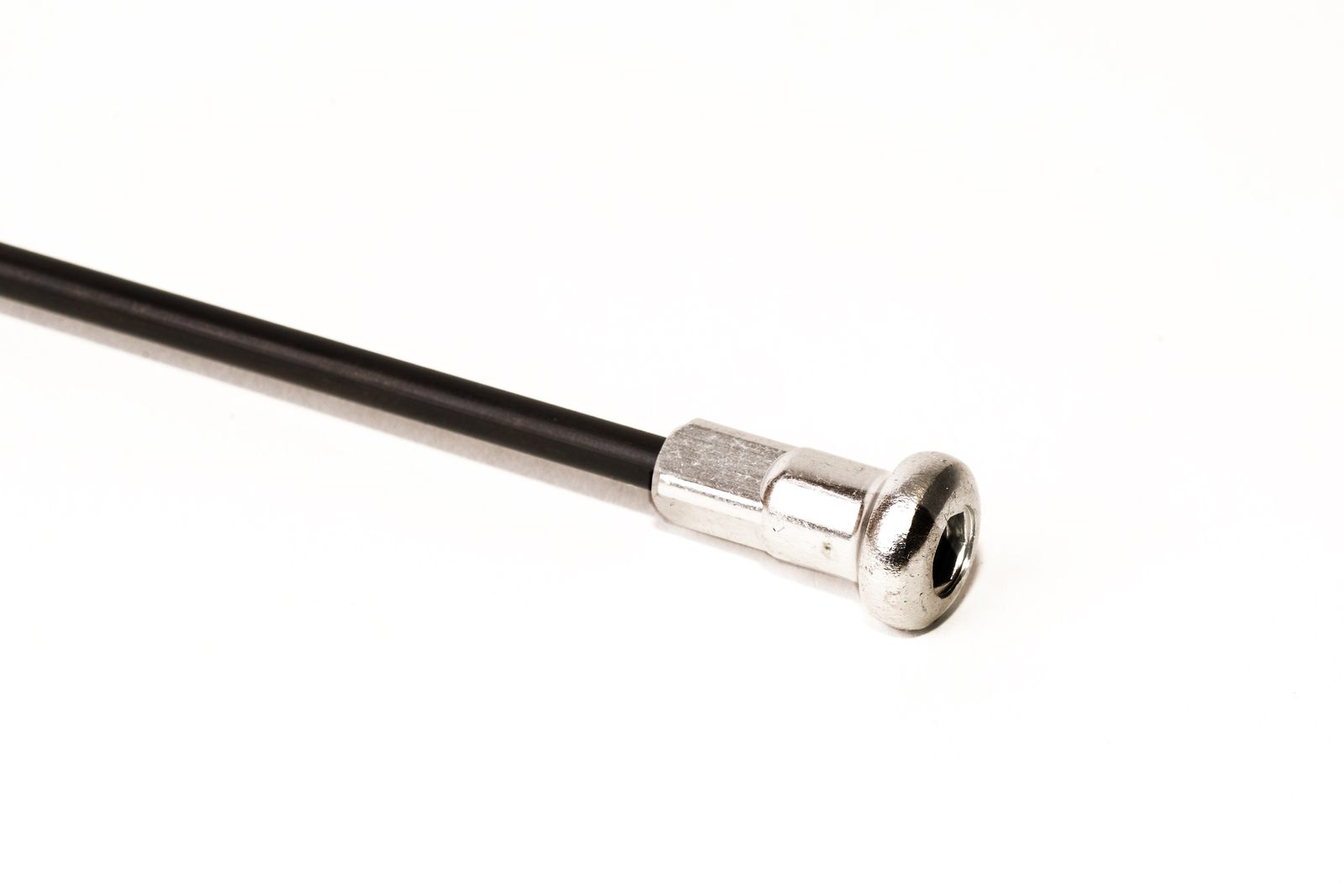

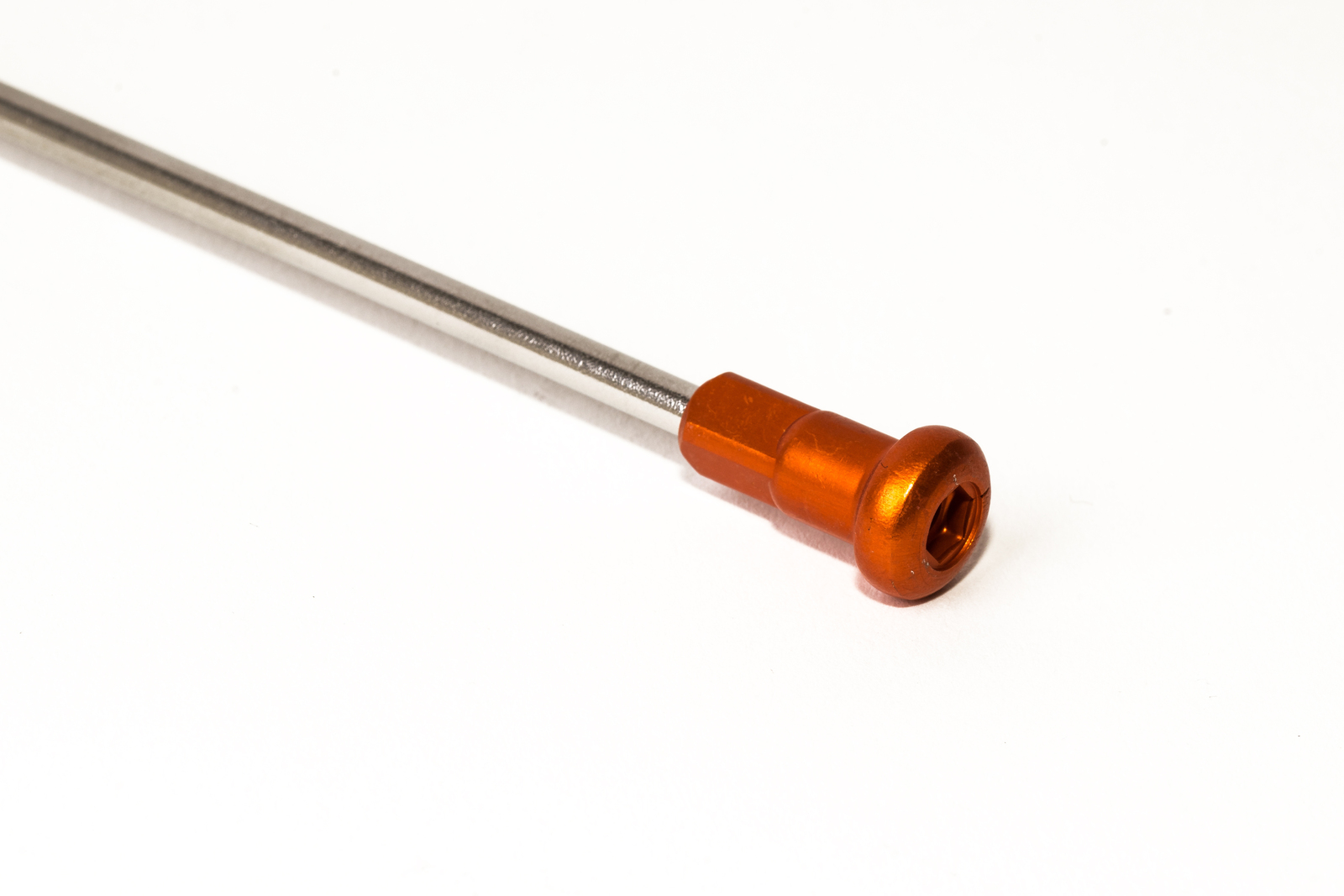

Our spokes are made from a special stainless steel. The spokes are made to the needed size in our factory so we can make every spoke kit for different brands and type’s and also for older bikes.

  • Up to 30% stronger than original spokes.
  • Spoke kits are supplied with matching nipples.
  • The Haan black spokes are the same spokes as the stainless and are threaded with a chemical coating.

Haan Wheels spokes are available in Black or Stainless.

Nipples are available in Black, Silver, Gold, Yellow, Red, Green, Orange and Blue.

Ok so what is the KTM 790 Rally Wheel Set. This wheel set is quite simply the strongest combo possible for the new KTM 790. We start with a HAAN cush drive rear hub and then lace that to the Excell Takasako Rim with the best spokes made from Haan. Sounds simple but why buy them from Dirtbike Pty Ltd

Dirtbike Pty Ltd is also owned by myself Glenn Hoffmann which was resposible for the GHR Honda victories at Finke / Australian Safari / Condo 750 . GHR Honda had many rental bikes also at these events and two successful campaigns at Dakar using what I call the Rally wheels.

For the KTM 790 we use a different 21" front size and 18" rear size than Standard. This is the ultimate set up should you want to use tyres more suited to offroad use and mousse, you can of course use traditional tyres and Heavy Duty tubes if you like also no problem.

The advantage of the Rally Rim is it is much more reliable than even a normal excell purchased from other vendors. 300,000km with riders like Grabbo and the Smith boys have taught us what combo works best and no rider has ever suffered a wheel failure on our Rally Wheels and no they are not A 60's. You are welcome to phone and I will discuss the difference in person.

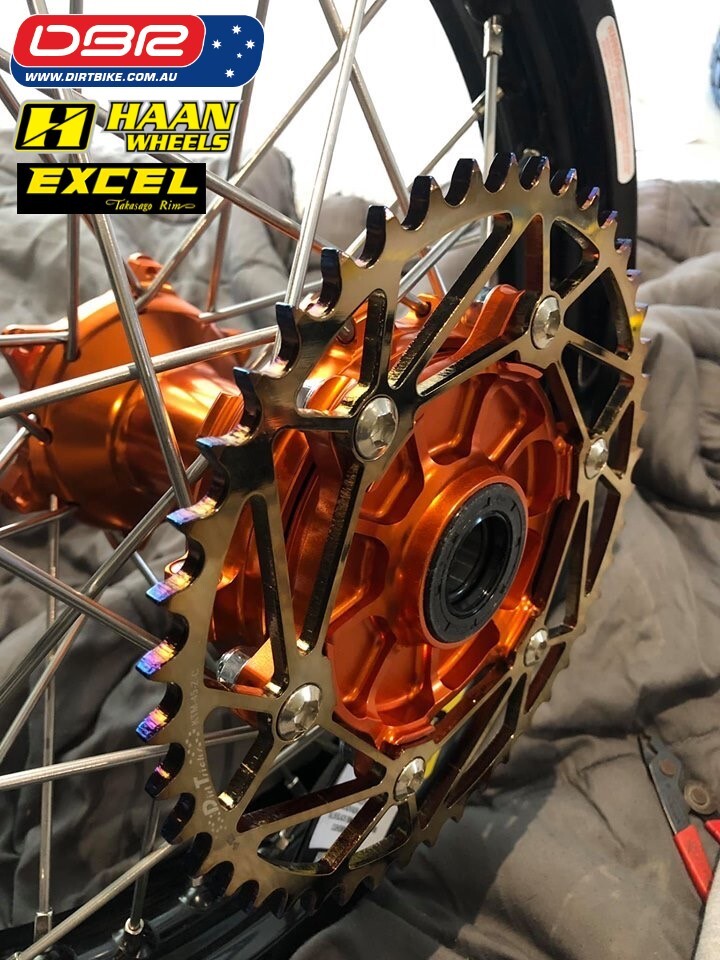

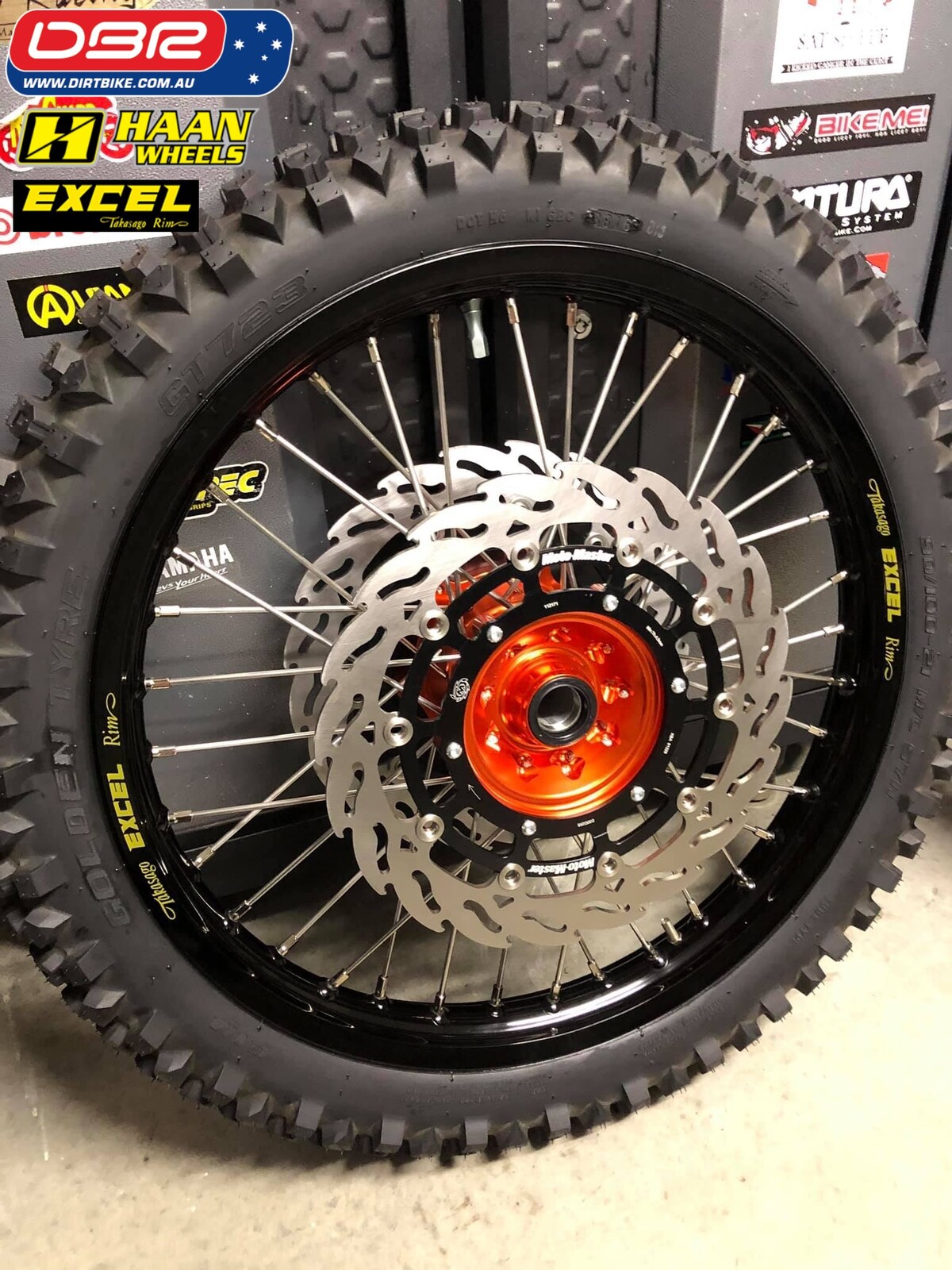

The original front brake discs and ABS ring can be fitted from your existing wheels (or you can go onto our search by bike KTM 790 you can then purchase the nesessary discs / ABS ring front and rear along with 45 tooth sprocket / rear disc and ABS ring. This will allow you to switch from the original road orientated rims and tyres to a True Rally type and size set of wheels.

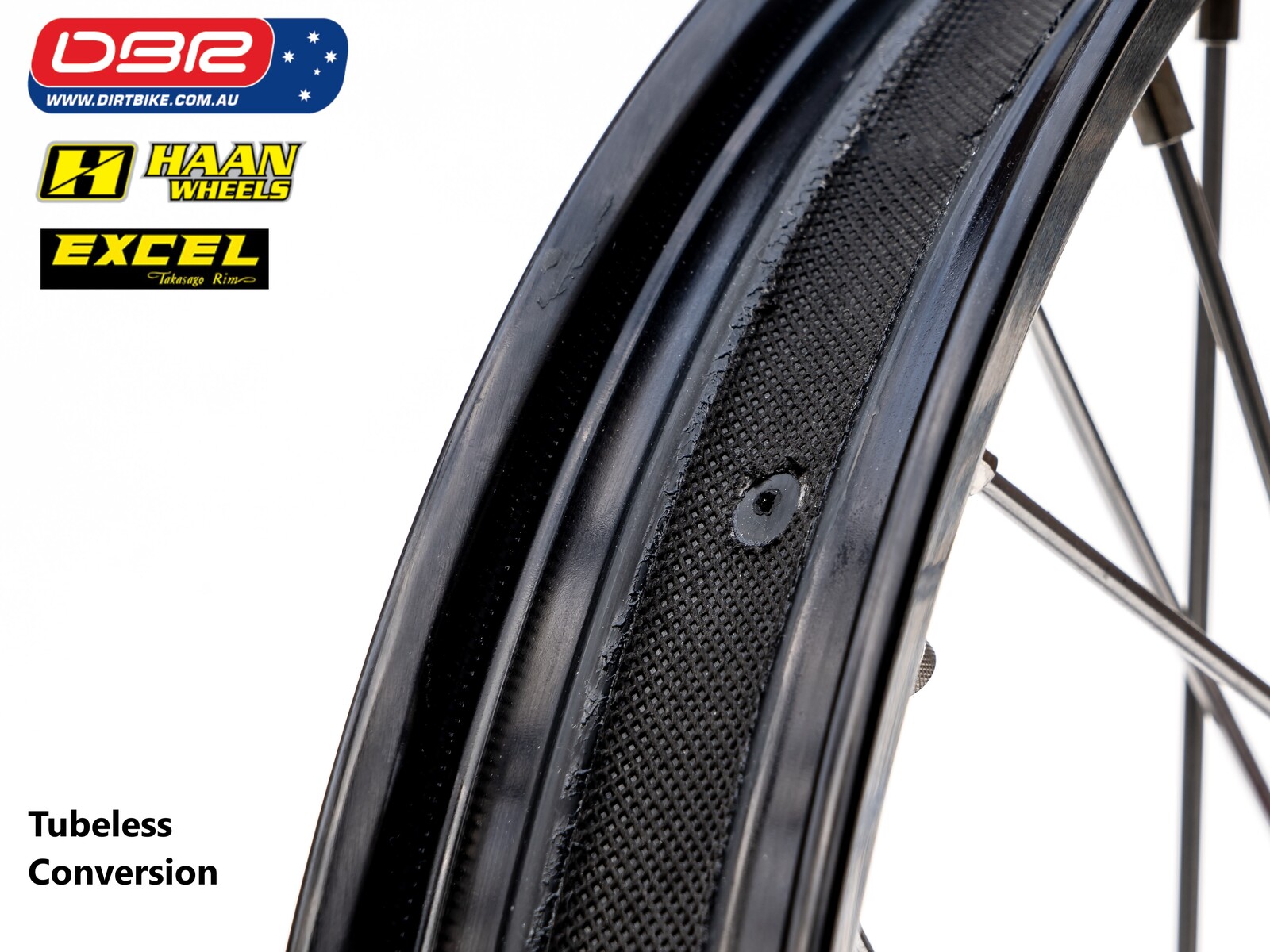

Other Rally wheel mods can include grease nipples kit which allow you to inject mousse gel into the rear wheel and tyre externally. Another GHR first. This allows you to extend the life of the tyre and mousse considerably. GHR Hondas have logged over 300,000 km on these rims with mousse and never suffered a failed mousse or Rim that was unrideable. The KTM Factory Rally Twin cylinder race bikes of Meoni and Sala back in the day used these sizes of rims so they are proven on a 200kg dirt bike. Michelin make three different rear mousse in 18" and Excell alone make 5 different 18" rims that other vendors may try to sell you. Only one of the mousse is suitable for long distance racing or trailriding and then matched to the correct rim size and crown. YES excell have different crowns in this size which make fitting tyres and mousse more difficult if you get the wrong combo. On top of that you then need to run the correct tyre to match the mousse and rim.

With the correct rear rim size and crown matched to the correct tyre and Mousse GHR has never suffered a rear wheel failure or mousse failure in a event which has caused a DNF for either a lead rider or customer. In fact Gary Gray from Cobar won a competition with ADB to ride a GHR Honda XR 650 on Safari. He Completed the entire event 4,500km on one rear tyre and Mousse. Never changed , fact!!

  • Haan Billet Hub made in Holland from 6082 Aluminium.

  • Excel Aftermarket 7000 Series Rims - made in Japan.

  • Super heavy duty spokes, from Haan.

  • Nickel-plated steel heavy duty nipples.

  • Customize your wheels with your favourite colour combinations.

  • Although every effort is made to ensure provided information is correct, Haan / Excel accepts no liability for any errors or any consequences which may arise due to such errors. Haan / Excel also reserves the right to change specifications, discontinue or introduce new products without prior notice. All product images presented are for illustrative purposes only and may vary from actual product depending on bike application.

  • Excel Takasago KTM 790 Rally Rims are available in Black, Silver, Gold, Blue and Yellow

  • KTM 790 Rally Hubs are available in Orange / Silver / Black

  • Our spokes are made from a special stainless steel. The spokes are made to the needed size in the Haan factory.

  • Up to 30% stronger than original spokes.

  • So if you are interested in a set please phone to discuss.
