SKU: SC-MK-KTM-SUB-S-3529-01-R

Scotts Steering Damper Australia Mount Kit Husqvarna 701 16-Current, KTM 690 19->Current

$649.00


Calculate Shipping



Australia Post - $26.00
Express Post
Standard Shipping Toll - $38.00

Description

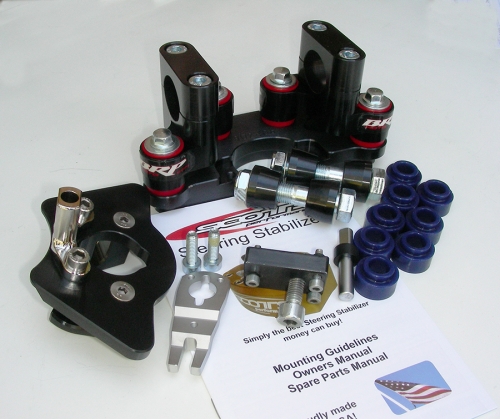

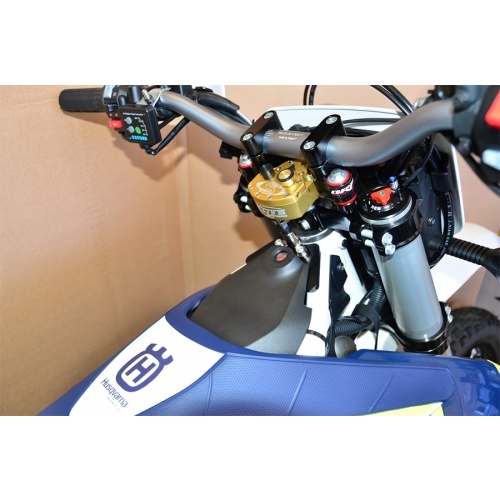

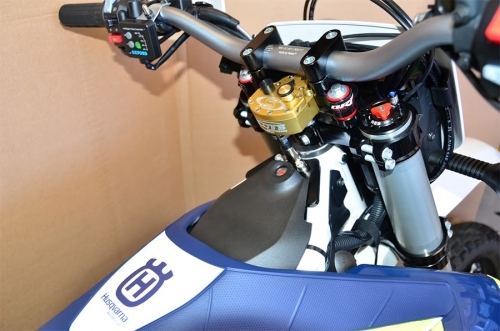

The kit includes everything except the stabilizer and specific link arm. This application requires the damper to be fitted with a -5mm stepped open link arm. The correct link arm is supplied with the damper if you purchase at the same time as mounting kit. If you are bringing a damper from another model bike  you are likely to need this specific link arm you are welcome to call to discuss if unsure. A puller to remove existing arm is available in Scotts accessories tab also. By utilizing specially designed Poly-Urethane bushings we can offer a vibration dampening handlebar mount that will prevent arm pump and dramatically reduce rider fatigue. MED and SOFT bushings are provided. The frame bracket mounts around the stock ignition switch and blends in nicely with the Stock frame. All pieces are engineered for a clean fit. Slight trimming of plastic shroud covering key area is required. The sub mount raises the bars 15mm, normally more desirable on this bike, but retains them in the same front to rear position as the stock #1 position. Lower bend bars are available as an option on this site for anyone wanting lower bar positions. If you have any questions, feel free to call us.

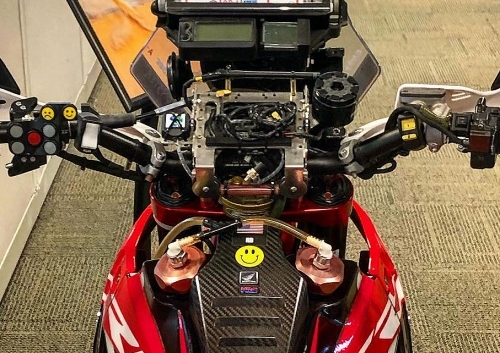

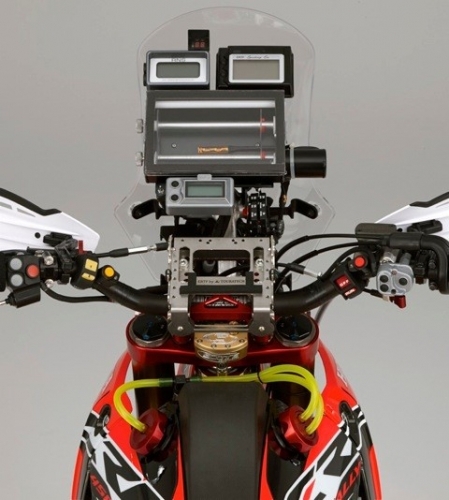

"SUB" mount stands for Stabilizer Under Bars, originally designed for raising the bars. These kits are designed for use with Oversize bars. "Bar reducers" are available as an option, to convert the kit to standard diameter bars, should that be desired. This concept allows more room for other equipment such as, Global Positioning Systems(GPS) or Enduro/Rally computers and yet still retain the quick access for adjusting the stabilizer. This is also good for the taller rider who wants his bars a little higher, as it raises the bar location approximately 11-25mm, depending on the model of bike. In some cases, you might consider a lower bend handlebar bend at the same time, unless you are trying to achieve a higher bar height along with your stabilizer installation. We can also help you with other handlebar choices to match your desired setup, as we have a full selection of handlebars to choose from on this website. The SUB mounts are only available on certain models based on the physical limitations of mounting in this area. Each SUB mount comes complete with all necessary parts, hardware and "Step by Step" pictured instructions. If you have any questions, feel free to call or email us.

Scotts MK-KTH-SUB-3529-01R

Scotts Mount Kit KTM Husqvarna (3529) (SM 90 24 06) Sub RUBBER

HUSKY 701  2016-> Current

KTM 690       2019-> Current.

(-5mm Link Arm required)

Specifications

SKU SC-MK-KTM-SUB-S-3529-01-R
Brand Scotts
Shipping Weight 3.1000kg
