Scotts Steering Damper Mount Kit KTM (9164) (SM 90 00 33) Sub 1090 / 1190 / 1290 > RUBBER Damped kit 2013->Current Australia

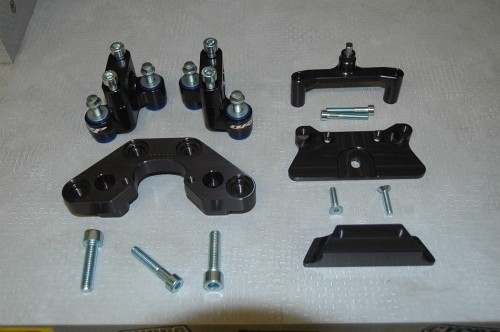

Shown here is the complete bolt on SUB mount kit for the 1190 Adventure and R models. This is a substantial improvement to this model. This is a rubber SUB mount to help reduce vibration to the hands and it mounts to the stock triple clamp. Sub mount comes assembled with medium compound bushings and additional soft compound bushings are included. The kit includes everything you need to make the installation easy and quick. This kit raises the handlebars 38mm and puts the forward 13mm, a position we found to be very popular for this model. Mount-Kit-Only includes everything except the stabilizer and link arm. This kit is designed to be used with the stock triple clamp and oversize handlebars.

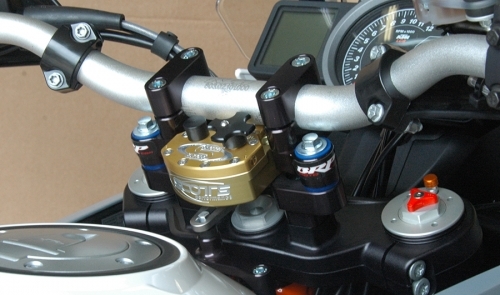

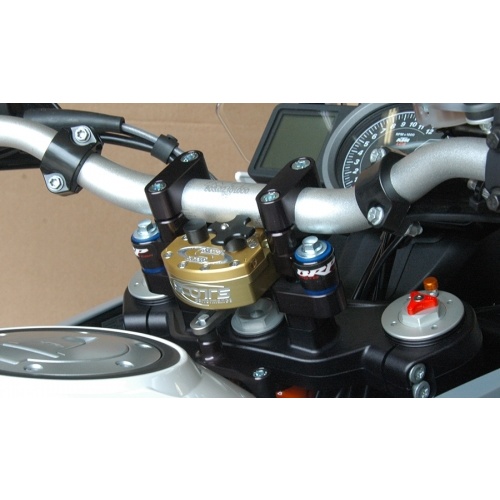

The Rubber SUB mount shown here in black, bolts to the stock triple clamp and converts your solid mounted triple clamp into a vibration-absorbing rubber mounted handlebar, while incorporating the SUB mounted stabilizer to slip in under the bars. MED and SOFT compound bushings are provided to suite rider preference. The SUB mount locates the bars between the #2 and #3 positions. Step by step pictured instructions are included along with all the necessary hardware. Standard diameter bars can be used in some cases, but would require our Bar Reducers which are available on our site as an option, if needed. We also supply a new top stem nut for 2015-on bikes. Cable guide available seperately.
The "SUB" mount stands for Stabilizer Under Bars, originally designed for raising the bars. These kits are designed for use with Oversize bars. "Bar reducers" are available as an option, to convert the kit to standard diameter bars, should that be desired. This concept allows more room for other equipment such as, Global Positioning Systems(GPS) or Enduro/Rally computers and yet still retain the quick access for adjusting the stabilizer. This is also good for the taller rider who wants his bars a little higher, as it raises the bar location approximately 11-25mm, depending on the model of bike. In some cases, you might consider a lower bend handlebar bend at the same time, unless you are trying to achieve a higher bar height along with your stabilizer installation. We can also help you with other handlebar choices to match your desired setup, as we have a full selection of handlebars to choose from on this website. The SUB mounts are only available on certain models based on the physical limitations of mounting in this area. Each SUB mount comes complete with all necessary parts, hardware and "Step by Step" pictured instructions. If you have any questions, feel free to call or email us. The Photo attached here may be a generic photo to show you the basic components in the kit, but may not be showing the exact kit for your specific bike.Sub Mount can usually come as both a solid mount kit or Rubber Damped option for certain KTM Based models. Great reduction in vibration through the handlebars and help older trail /enduro riders extend their riding time.
Scotts Mount Kit KTM (9164) (SM 90 00 33) Sub 1090 / 1190 / 1290 > RUBBER Damped kit 2013->Current
