Scotts Damper Australia SUB Rubber Mount 090 12 17

Scotts Bar Clamp Mount SUB Rubber (SM 90 12 17)

KTM  (12-15) SX / SXF/ XC / XCF.

Husky (14-15) FC / FX / TC / TX.

KTM (16-23) EXC / EXCF / XCW.

Husky (16-23) FE / TE.

Description

The BRP Rubber Mounted SUB “Scotts Under Bar”  Adapter uses (8) Poly-Urethane bushings to isolate vibration and reduce rider fatigue by softening the harsh spike of hitting square edge rocks and obstacles.

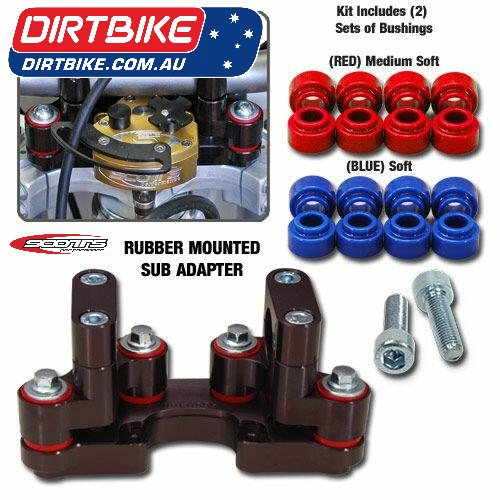

BRP RUBBER SUB MOUNT RSA-901217 KIT INCLUDES:

• 1) BRP Rubber Mounted SUB Adapter
• 2) Sets of Rubber Bushings (Red = Medium and Blue = Soft.)
• & All Necessary Hardware.

We recommend using a Clean Speed Cable Guide  to ensure proper cable routing.

(this also works if you just want vibration dampening bar mounts with the option to add a stabilizer later)

Designed to mount a Scotts stabilizer below the handlebar using your OEM cast or billet triple clamp. The BRP Rubber Mounted SUB adapter mounts to the existing rear bar mount holes and allows you to run in position 3 which is the most common and popular position.

SUB Mounting a stabilizer offers several benefits over a conventional “above bar” setup and is becoming a very popular setup for GP’s, motocross, off road, dual sport applications and riders of taller stature.

• Offers an approximately 1″ taller bar position
• Lower Bend Bars can be used to compensate for additional height.
• SUB Mounting reduces the risk of bodily injury
• Stabilizer is tucked away and protected from potential damage from a crash.

When it comes to service we offer complete rebuild service on all Scotts stabilizers.

SPECIAL NOTES:

When running a stabilizer in the sub mount configuration, the stabilizer link arm will need to be reverse mounted “going under the body of the unit”.

To reverse the link arm we recommend using a Scotts Link Arm Puller (Sold Separately).
