SKU: SC-MK-BET-SUB-5826-02R

Scotts Steering Damper Australia Kit Beta: (18-Current) 4 Strokes. 5826-02R Sub Mount Rubber

(18-Current) 4 Strokes. 5826-02R Sub

$549.00


Calculate Shipping



Standard Shipping Toll - $19.00

Australia Post - $20.00
Express Post

Description

The The BRP Rubber Mounted SUB “Scotts Under Bar”  Adapter uses (8) Poly-Urethane bushings to isolate vibration and reduce rider fatigue by softening the harsh spike of hitting square edge rocks and obstacles. NOW available with two different durometer bushings to fine tune the amount of vibration dampening.

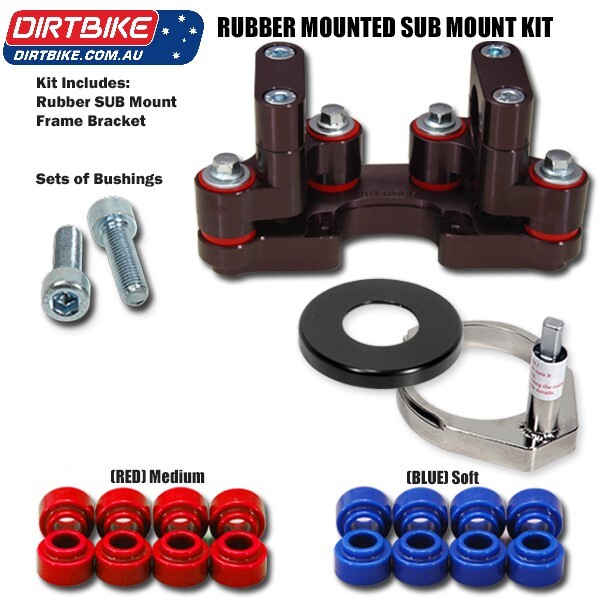

BRP RUBBER MOUNTED SUB KIT INCLUDES:
1) BRP Rubber Mounted SUB Adapter
2) Sets of Rubber Bushings -(Red = Medium and Blue = Soft.)
& All Necessary Hardware.

We recommend using a Cable guide SUB (Sold Separately) to ensure proper cable routing.

This kit is designed for those of you who already have a Scotts stabilizer and frame bracket and would like to go sub mounted. Kit includes Sub adapter and all necessary hardware.

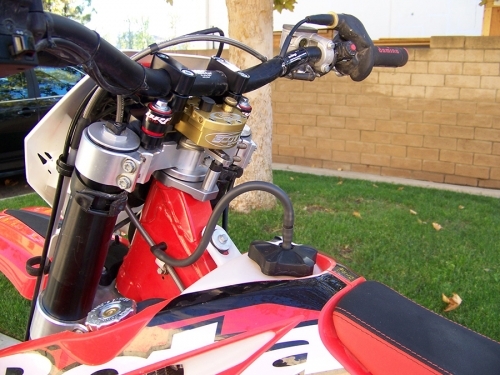

Designed to mount a Scotts stabilizer below the handlebar using your OEM cast or billet triple clamp. The BRP Rubber Mounted SUB adapter mounts to the existing rear bar mount holes and allows you to run in position 3 which is the most common and popular position. SUB Mounting a stabilizer offers several benefits over a conventional “above bar” setup and is becoming a very popular setup for GP’s, motocross, off road, dual sport applications and riders of taller stature.

  • Offers an approximately 1″ taller bar position
  • Lower Bend Bars can be used to compensate for additional height.
  • SUB Mounting reduces the risk of bodily injury
  • Stabilizer is tucked away and protected from potential damage from a crash.

Note: With the BRP Rubber Sub Mount, there is only 3-4mm of adjustment room to raise the forks.


SPECIAL NOTES:
When running a stabilizer in the sub mount configuration, the stabilizer link arm will need to be reverse mounted “going under the body of the unit”. To reverse the link arm we recommend using a Scotts Link Arm Puller (Sold Separately). This unit cannot be used with cycra center reach mount handguards.

Specifications

SKU SC-MK-BET-SUB-5826-02R
Brand Scotts
Shipping Weight 1.2000kg
Shipping Width 0.160m
Shipping Height 0.120m
Shipping Length 0.210m
Shipping Cubic 0.004032000m3
