SKU: ScottsMK-KAW-SUB-6628

Scotts Damper Australia Kawasaki KX450F 2012 to 2018 MOUNT KIT ONLY Oversize SUB


Calculate Shipping

Standard Shipping Toll - $19.00

Australia Post - $20.00
Express Post

Scotts MOUNT KIT ONLY for KX450F 2009 on SUB Mount Oversize Bar ****Please phone 02 4872 4222 for availability and pricing****

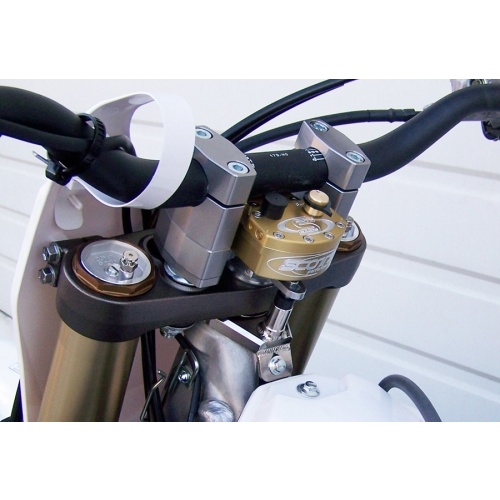

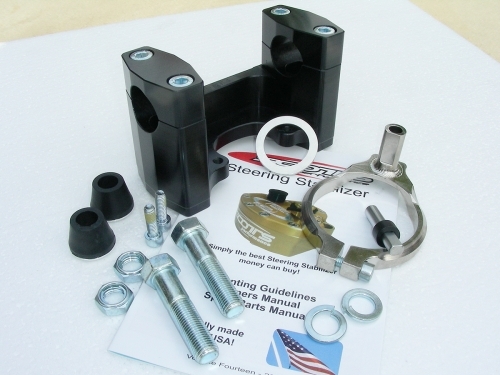

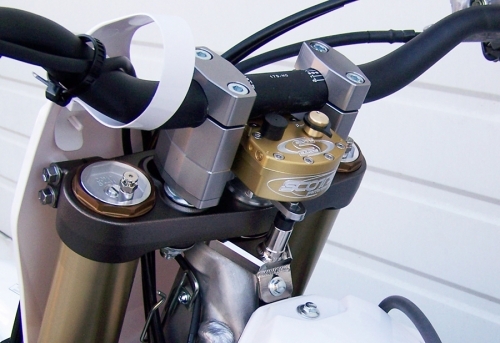

 The Mount-Kit-Only includes everything except the stabilizer and link arm. This kit is designed to be used with over-sized bars. Standard 7/8" bars can be used with our optional reducer bushings which can be ordered here online, if needed. We've machined this SUB mount to give you 2 possible handlebar mounting locations. 5mm and 15mm forward of the stock bar position #2 can be obtained. Picture may not be your exact model but depicts the same mounting configuration. **SPECIAL NOTE: 2017 on KXF 250's and 2016 on KXF 450's may require slight filing to casting seams on each side of frame to fit frame bracket.

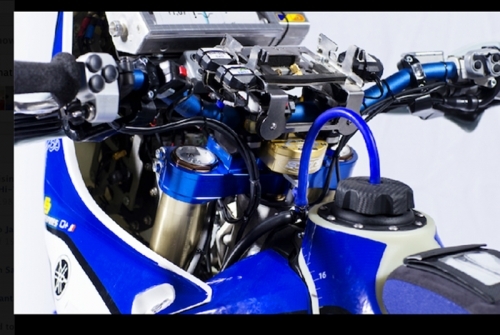

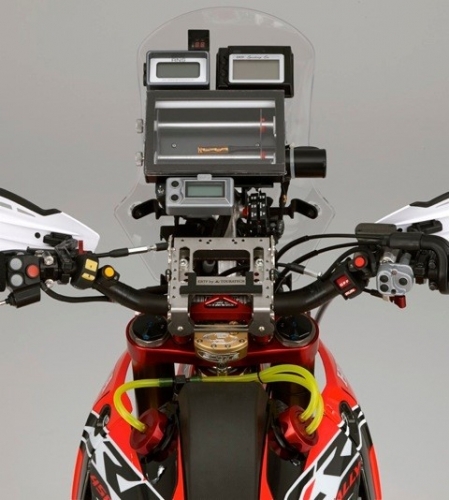

"SUB" mount stands for Stabilizer Under Bars, originally designed for raising the bars. These kits are designed for use with Oversize bars. "Bar reducers" are available as an option, to convert the kit to standard diameter bars, should that be desired. This concept allows more room for other equipment such as, Global Positioning Systems(GPS) or Enduro/Rally computers and yet still retain the quick access for adjusting the stabilizer. This is also good for the taller rider who wants his bars a little higher, as it raises the bar location approximately 11-25mm, depending on the model of bike. In some cases, you might consider a lower bend handlebar bend at the same time, unless you are trying to achieve a higher bar height along with your stabilizer installation. We can also help you with other handlebar choices to match your desired setup, as we have a full selection of handlebars to choose from on this website. The SUB mounts are only available on certain models based on the physical limitations of mounting in this area. Each SUB mount comes complete with all necessary parts, hardware and "Step by Step" pictured instructions. If you have any questions, feel free to call or email us. The Photo attached here may be a generic photo to show you the basic components in the kit, but may not be showing the exact kit for your specific bike.


To Suit: Scotts Mount Kit Kawasaki (6628) (SM 98 03 14) Sub O/S Bar KXF 450 12-> KXF 250 15->

Scotts MK-KAW-SUB-6628-07

****Please phone 02 4872 4222 for more information and pricing****


SKU ScottsMK-KAW-SUB-6628
Brand Scotts
Shipping Weight 1.2000kg
Shipping Width 0.160m
Shipping Height 0.120m
Shipping Length 0.210m
