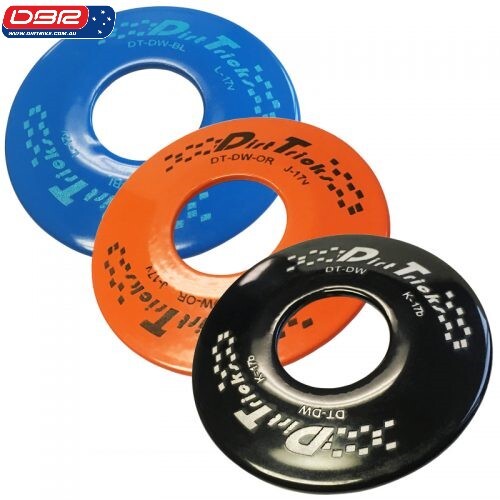

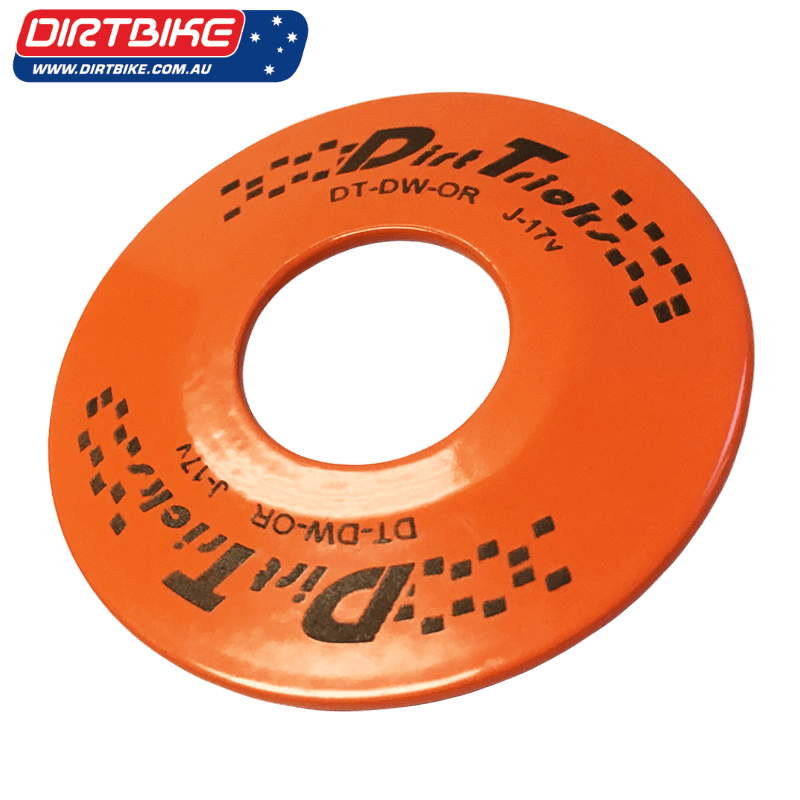

Dirttricks Australia KTM / Husky / Gas Gas : Counter Shaft Dome Washer BLUE

This item is a stocked item. That is we aim to have it on the shelf in Australia ready to ship. Not all stocked items are always on the shelf, you are welcome to contact us via phone or email and check stock status and or our expected next delivery from supplier. Thanks in advance, the Dirtbike crew.


Calculate Shipping

Australia Post - $13.00
Express Post
Standard Shipping Toll - $17.00


Why does my KTM Leak Oil Around the Counter-shaft?

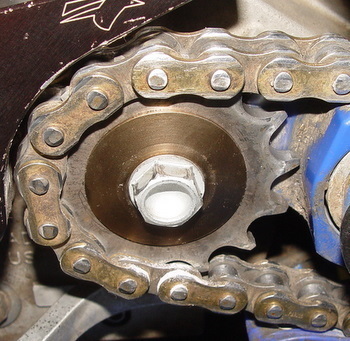

For twenty plus years, KTM has used a “spring washer” or “dome washer” along with a locking bolt to retain the four-stroke counter-shaft sprocket. A retaining ring is used on the two-strokes. After a year or two of riding, many KTM four-strokes develop an oil leak around the counter-shaft. This often shows itself as streaks of oil lines on the face of the counter-shaft sprocket. When removing the counter-shaft sprocket, most riders immediately see the lip seal pressed into the case around the splined counter-shaft. This is usually what gets replaced in order to eliminate the oil leak. Often the leak still remains after replacing the seal. So how is the oil escaping? We at Dirt Tricks were frustrated as were many, so we disassembled everything possible behind the counter-shaft sprocket. Then we 3D-modeled what we found in order to figure out where the oil was coming from. In the diagram, you will see an “O-ring” mounted in the spacer bushing. That O-ring keeps oil from leaking down the shaft between the counter-shaft and the spacer bushing. The lip seal rides against the outside of the spacer-bushing. What we also discovered, is that every time we noticed an oil leak, the “spring washer” on the outside of the sprocket was not holding the sprocket tight. Then we examined the stock KTM spring washer and discovered that over time, it completely flattened. Often, you can actually spin the spring washer on the bike with the sprocket bolted down. If you study the diagram below, when the spring washer does not hold pressure against the sprocket, the entire stack of parts – from sprocket bolt to the bearing race, is loose. That allows that small O-ring to separate from the face of the bearing race and there is the oil path. Without a functioning O-ring, the spacer bushing is just a pipe for the oil to run through.

The Solution:

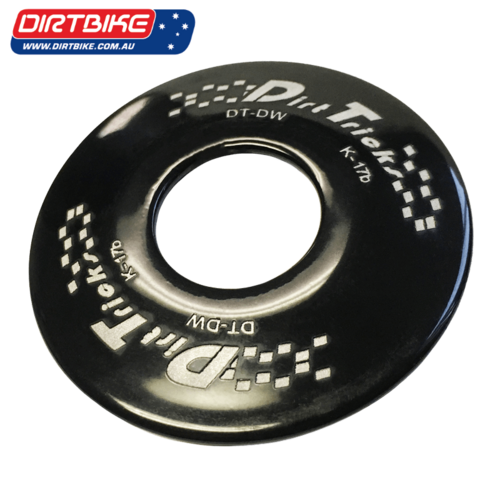

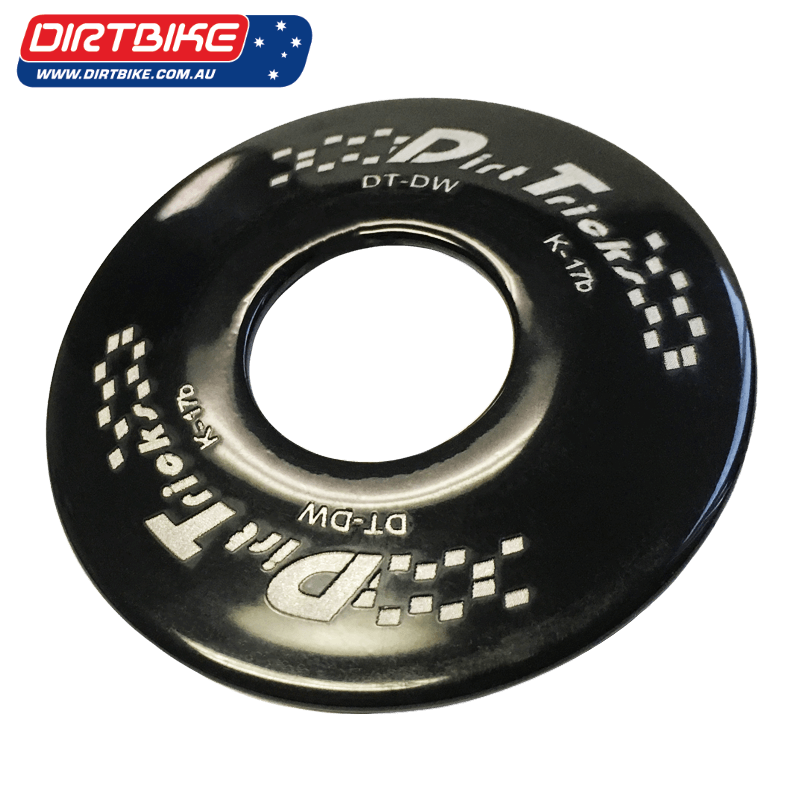

When performing hardness tests on the KTM spring washer, we determined that it was not much of a spring, and yielded the first time is was compressed and would not spring back. We solved the problem by producing a through-hardened, tool-steel replacement spring washer that acts like a true spring. When removed, unlike the KTM washer, it returns to its original dome shape. The Dirt Trick dome washer can be repeatedly re-used. It is extremely hard and tough.
We hope this has not been to over-technical, but with a little detective work, we have solved a simple but nagging problem. So if you have a counter-shaft oil leak, start by replacing your spring washer with the Dirt Tricks dome washer.



Brand Dirt Tricks
Shipping Weight 0.1000kg
Shipping Width 0.010m
Shipping Height 0.100m
Shipping Length 0.100m
